Installationtesters

CAT IV Installation Kit

626000865
Summary

CAT IV Installation Kit

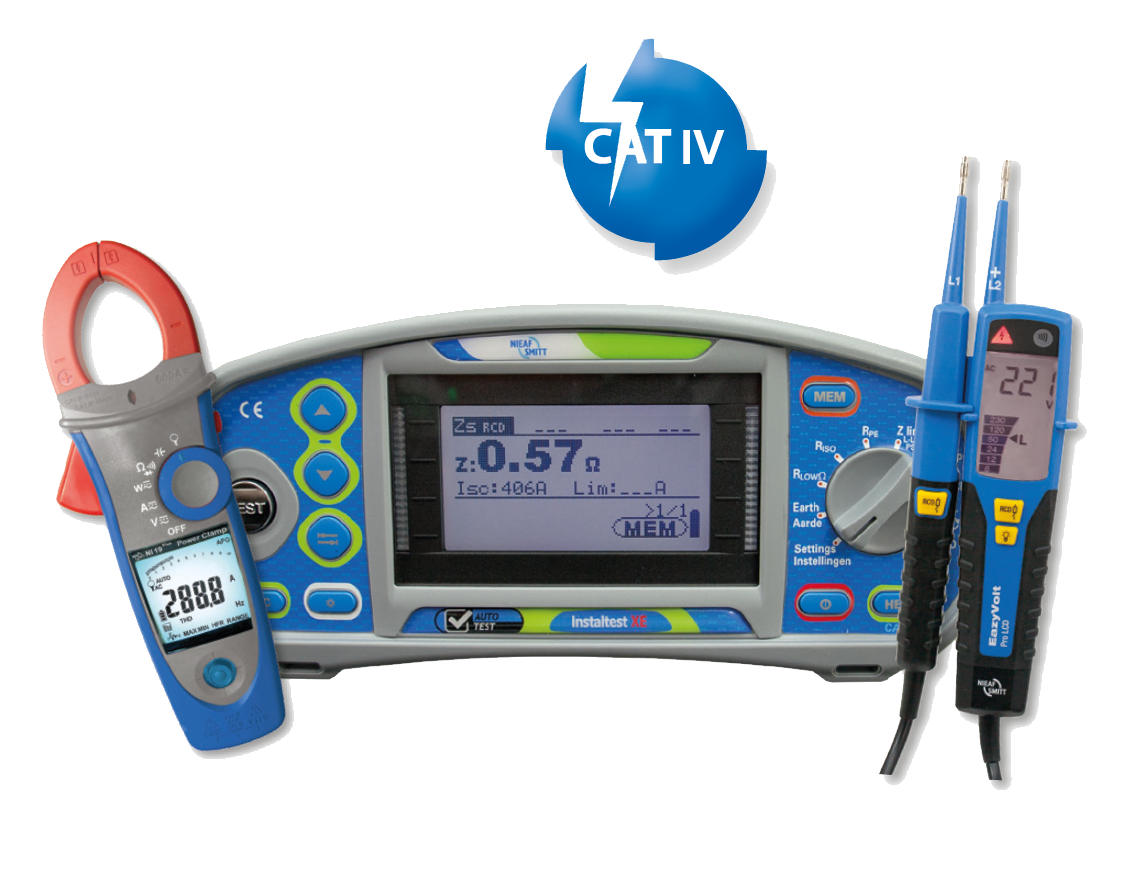

This kit consists of the following products:

The Instaltest XE is an easy to use and compact combination installation tester according to NEN 1010, NEN 3140 and EN 61557.

The tester has a huge number of options, each driven by separate accessories. Using the rotary switch, the user can easily select a measurement, which is clearly displayed on the large LCD screen. Response time and tripping current of the RCD, impedance testing, rotary field and insulation resistance are just a small sample of the many possibilities.

A clear True / False indication clarifies the test result. The measurements can be downloaded to the supplied software.



Measurements

  • Insulation resistance
  • Continuity
  • Contact voltage of the RCD
  • Trip time of the RCD
  • Automatic RCD test
  • Trip current of the RCD
  • Earthloop impedance without tripping RCD
  • Phase rotation
  • Earth resistance
  • Line impedance (Z-line)
  • Earthloop impedance (Z-loop)
  • Voltage
  • Earth resistance

Including

  • Manual
  • Strap
  • RS232 and USB cable
  • Installing software
  • Quick Guide
  • Rechargeable batteries
  • Charger
  • Alligator Clips

Specifications

Function Range
Isolation resistance
100, 250, 500 en 1000 V
0.00...999 MΩ
Continuity
Test current 200 mA (LPE, NPE)
0.00...1999 Ω
Earth leakage trip test
Nominal voltage
RCD trip current
RCD contact voltage
Test current
RCD trip time
Test current RCD
Type RCD
Current type
93...266 V / 45...65 Hz
10, 30, 100, 300, 500, 1000 mA
0.0...99.9 V
< 0.5 x I∆n
0...999 ms
0.5 xI∆n / 1x I∆n / 2x I∆n / 5x I∆n
G, S, PRCD
AC / A / F
Impedance tests
Loop
Line
0.00...9.99 kΩ
0.00...9.99 kΩ
Voltage 0...550 V
Frequency
45...65 Hz
Phase rotation 100...550 VAC
Specifications
Memory
PC-interface USB/RS232
Overvoltage category  CAT III 600 V / CAT IV 300V
IP protection IP40
Supply 6x LR06 AA batteries
Dimensions  230 x 115 x 103 mm
Weight 1.3 kg (excl. batteries)
