CU-U900-I relay - Current monitoring

Summary

Description

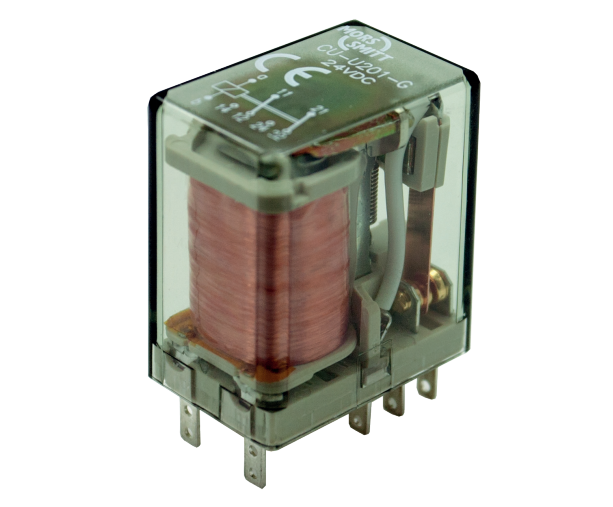

Miniature current monitoring railway relay with one change-over contact. Suitable for AC or DC currents. Very sensitive and high insulation between coil and contact. Relay for plug-in mounting (CU version) or for PCB mounting (CP version).

The construction of the relay and choice of materials makes the CU/CP-U900-I relay suitable to withstand corrosive atmospheres, low and high temperatures, shock & vibrating and dry to very humid environments.

With a very compact design and a wide range of sockets, the CU/CP-U900-I relay is an easy and flexible solution to use.


Application

These relay series are designed for rolling stock applications where available space is limited. The CU/CP-U900-I is used in applications for current monitoring or where switching is activated by a fixed current level.


Features

  • Miniature current monitoring relay
  • Instantaneous, 1 C/O contact
  • AC or DC coil
  • Very sensitive
  • High insulation between coil and contact
  • Flat, square and tin plated relay pins for excellent socket connection / PCB mounting pins
  • Wide range sockets
  • Transparent cover
  • Optional positive mechanical keying relay to socket


Benefits

  • Proven reliable
  • Long term availability
  • Easy to maintain
  • Used in safety critical applications
  • Low life cycle cost
  • No maintenance

Railway compliancy

  • EN 50155 Electronic equipment used on rolling stock for railway applications
  • IEC 60571 Electronic equipment used on railway vehicles
  • IEC 60077 Electrical equipment for rolling stock in railway applications
  • IEC 60947 Low voltage switch gear and control gear
  • IEC 61373 Rolling stock equipment - Shock and vibration test
  • EN 50121 Electromagnetic compatibility for railway applications
  • NF F 16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
  • IEC 60529 European standard describes the protection class (IP-code)
  • NF F 62-002 On-off contact relays and fixed connections

Certifications


Available versions

Type Nominal current (ADC)
CU-U903-I 0.39
CU-U904-I 0.12
CU-U908-I 4.4
CU-U909-I 2.4
CU-U910-I 1.5
CU-U911-I 1.0
CU-U912-I 0.6
CU-U913-I 0.25
CU-U914-I 0.18
CU-U915-I 0.072
Other currents on request
