Subsystems Energy Consumption

Sub-systems Energy Consumption

Achieving energy saving request to understand train internal systems consumption.
Rolling stock includes several energy consumers with propulsion and auxiliary systems. Knowing accurately the share of consumption of all the major contributors is a prerequisite of saving strategy and target follow up.

Compact and easy to install and connect to every kind of sensors, energy meter is the perfect solution to accurately measure train sub-systems consumption. This gives a reliable overview of the energy mapping and sharing.

Fitted with Ethernet and RS485 communication port, energy meter can transfer added value data to train network and energy Data Handling System for complete consumption overview.

Products in this solution

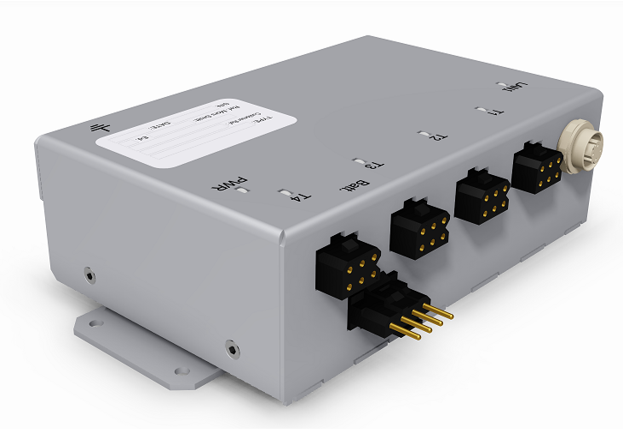

		Energy meter Compact meter with 4 analog inputs AC & DC energy calculation Highly-accurate Integrated power supply

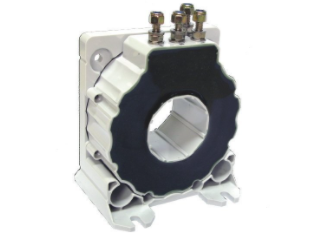

		Hall effect sensors Hall effect sensors (closed loop technology) ensure high accuracy of voltage and current measuring in railway traction or substation power equipment for protection against power surges, overload, ground fault detection. Hall effect measurement to offer maximum protection in railway applications.
