Perfect solutions

New built or retro-fit, Mors Smitt delivers a perfect, competitive and on time solution for any onboard challenge of space limitations and / or technical requirements. No matter the size or quantities. We understand the need for integrated specialised and optimised electrical solutions when (spare) parts are no longer available or improvement in e.g. energy efficiency or reduction of weight and space is required.


Optimizing rolling stock LCC & RAMS

Designing, updating and/or improving electrical control systems to the latest standards and state-of-the-art technologies improves the life cycle costs (LCC) of rolling stock. Reliability will improve and long term availability of technology is guaranteed by Mors Smitt. We design easy maintainable products and solutions that comply to the latest health and safety standards using the latest eco-friendly materials. Optimized energy consumption contributes to a cleaner environment.

Experience

Our experienced engineers have thorough knowledge of train components & technologies, and we design, develop, test and deliver your solutions to the latest railway standards and directives. All research & development, engineering, manufacturing, assembly and testing will be done inhouse in one of our own factories in France and The Netherlands.


Download:



Engineered Solutions:

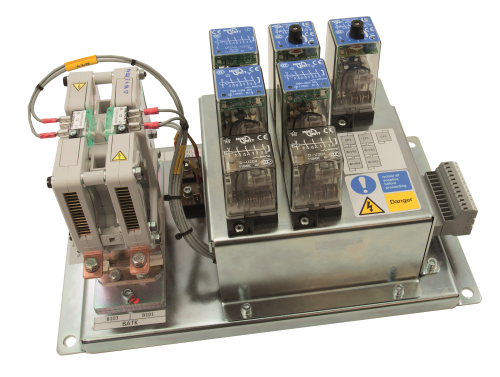

Battery protection and control module for railway applications

Features:

  • Power supply circuit supervision
  • Charging control battery backup circuit
  • Charge-fault detection
  • Voltage level monitoring and protection

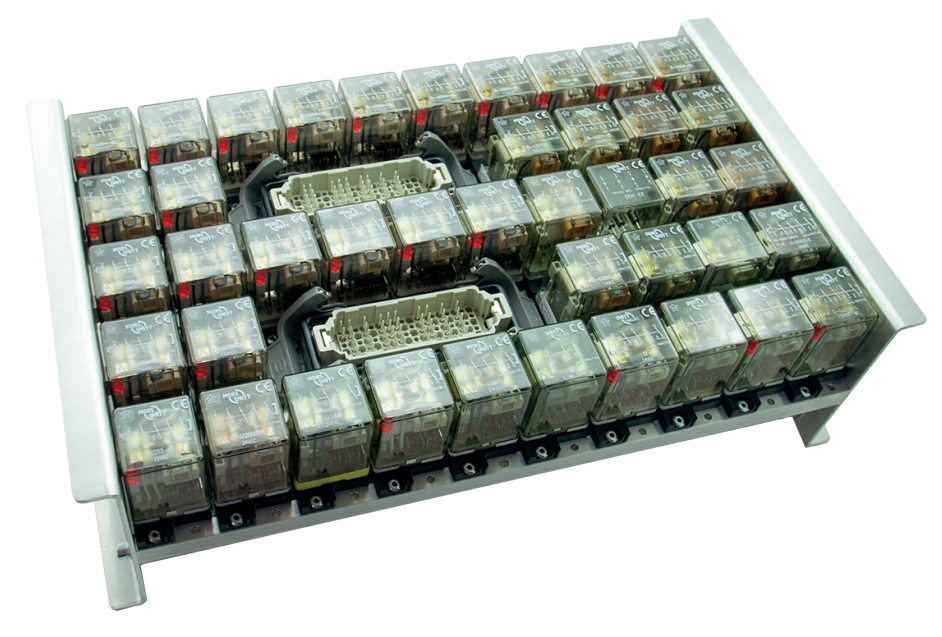

High Density Relay Module (HDRM)

Features:

  • Extremely compact, space saving
  • Up to 168 C/O contacts, 1 mA - 10 A @110 VDC
  • Fast, flexible & versatile
  • Line replaceable unit, efficient maintenance through integrated connectors
  • Tried and tested, railway proof
  • Flexible commissioning (through easy wiring)

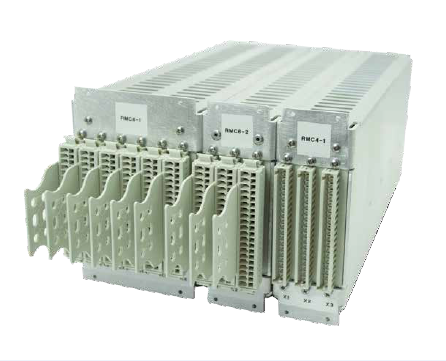

Relay Marshalling Box (RMB)

Features:

  • Fast, flexible & versatile
  • Free configurable up to 160 C/O contacts 10 A, 110 VDC
  • Efficient line replaceable unit
  • Tried and tested, railway proof
  • Compact solution

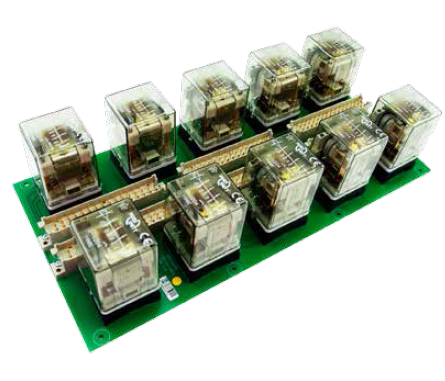

Universal PCB relay module

Features:

  • Easy configurable PCB relay module, 40 contacts
  • Flexibility to assign train functions to relay contacts and coils
  • Customisable internal PCB relay connections via wiring or PCB connection board
  • PCB mount sockets for easy (un) plugging of D-relays
  • Easy changeable, last minute changes possible
  • Many different options for relays, connectors, specifications
  • Strong reduction space and weight
  • Low cost
  • Very short delivery times
  • Local manufacturing (and sourcing) in country of choice possible
