CU-U200-G relay - Miniature, 2 pole

Summary

Description

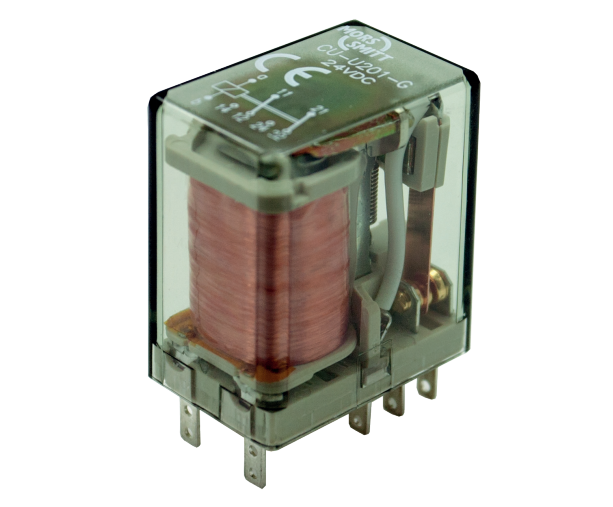

Miniature railway relay with two change-over contacts. The contacts are weld-no-transfer contacts: they are mechanically forced in the same position. Standard with high insulation because of flash barrier. Relay for plug-in mounting (CU version) or for PCB mounting (CP version). The construction of the relay and choice of materials makes the CU/CP-U200-G relay suitable to withstand corrosive atmospheres, low and high temperatures, shock & vibrating and dry to very humid environments. With a very compact design and a wide range of sockets, the CU/CP-U200-G relay is an easy and flexible solution to use.


Application

These relay series are designed for rolling stock applications where available space is limited.


Features

  • Miniature plug-in / PCB relay
  • Instantaneous 2 C/O contacts
  • Weld-no-transfer contacts
  • Flat, square and tin plated relay pins for excellent socket connection / PCB mounting pins
  • Wide range sockets
  • Transparent cover
  • High insulation because of flash barrier • Optional positive mechanical keying
    relay to socket


Benefits

  • Proven reliable
  • Long term availability
  • Easy to maintain
  • Used in safety critical applications
  • Low life cycle cost
  • No maintenance


Railway compliancy

  • EN 50155 Electronic equipment used on rolling stock for railway applications
  • IEC 60571 Electronic equipment used on railway vehicles
  • IEC 60077 Electrical equipment for rolling stock in railway applications
  • IEC 60947 Low voltage switch gear and control gear
  • IEC 61373 Rolling stock equipment - Shock and vibration test
  • EN 50121 Electromagnetic compatibility for railway applications
  • NF F 16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
  • IEC 60529 European standard describes the protection class (IP-code)
  • NF F 62-002 On-off contact relays and fixed connections

Certifications


Available versions

Type Nominal voltage (VDC)
CU-U201-G 24
CU-U202-G 48
CU-U203-G 72
CU-U204-G 110
CU-U205-G 96
CU-U206-G 12
CU-U207-G 36
Other voltages on request
