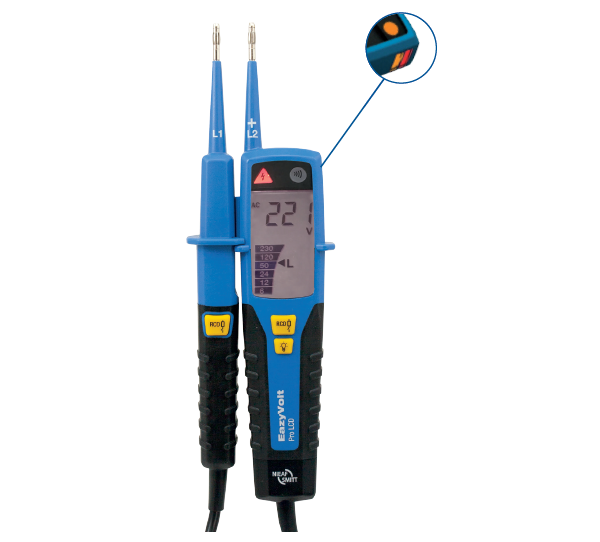

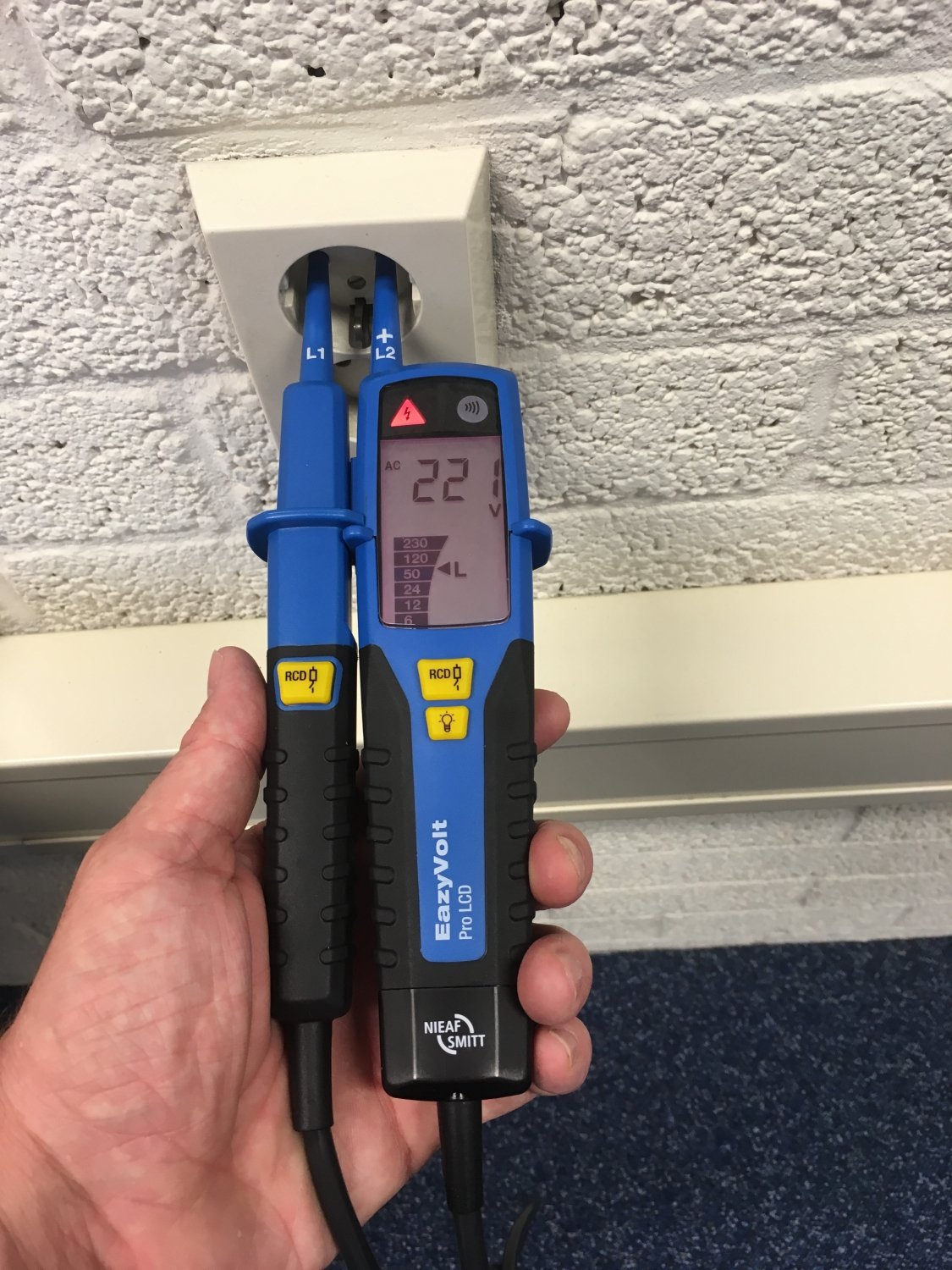

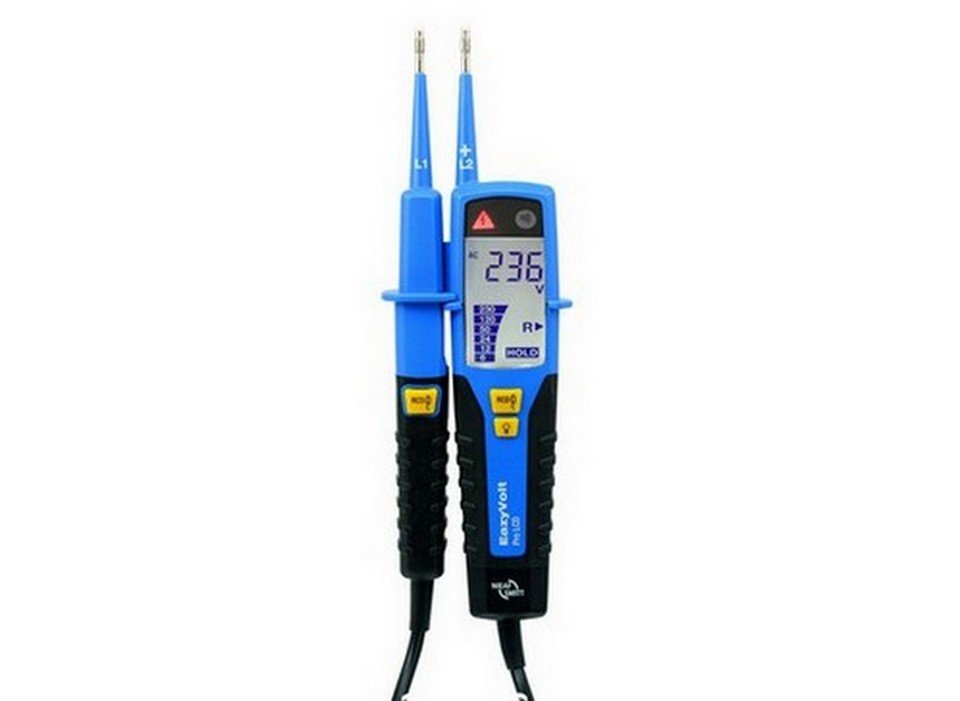

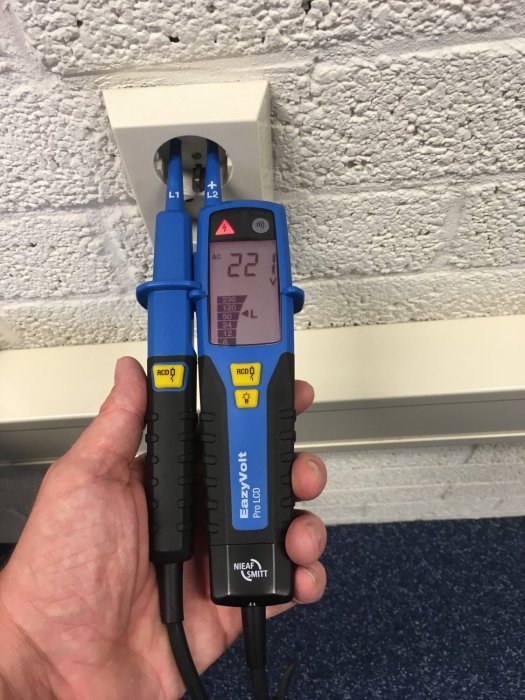

EazyVolt Pro LCD

626002060
Summary

2-pole Voltage tester

The EazyVolt Pro LCD is a 12-in-1 voltage tester up to 1000 VAC/15000 VDC according to EN / IEC 61243-3: 2014 with the following functions:

  • Measuring AC voltage
  • Measuring DC voltage
  • Phase detection (1-pole)
  • Continuity
  • Phase rotation
  • Self test
  • Torch
  • Resistance
  • Frequency
  • RCD test
  • Non contact voltage detection
  • Diode test

Features

  • Large LCD with background illumination
  • High resolution voltage measurement (0-30 V)
  • Audible sound
  • Vibration motor
  • Cable fault detection
  • Load test for suppression of ghost voltages
  • Hold function
  • Selectable probe tips 2 - 4 mm
  • Side indication
  • Water resistance (IP 64)
  • Self test
  • Shuko power outlet compliant (19 mm)
  • Flashlight/torch by ultra-bright LED
  • 3-Phase rotation
  • Side indication for high voltage and continuity

 Specifications

Function Range
Voltage 1..1000 V AC 1..1500V DC
Continuity < 500 KΩ
Resistance 0..2 kΩ
Frequency 16-800 Hz
Specifications
Auto power on > 6 VAC/DC
LCD resolution 0.1V (1…29.9 V), 1V (30…1500 V)
Voltagedetection Automatic
Responsetime < 1 s
Supply 2x AAA 1.5 V batteries
IP protection IP 64
Overvoltage category CAT III 1000 V / CAT IV 600 V
Drop proof 1 meter
Norm EN 61010-1 / -031, EN 61243-3, EN
60529, EN 61557-7/ -10/ -1, EN 61326,
EN 55011
Approvals CE, TÜV, GS
Dimensions 280 x 74 x 34 mm
Weight ± 220 g (incl. batteries)
