6RJ Series High Speed Tripping Relays

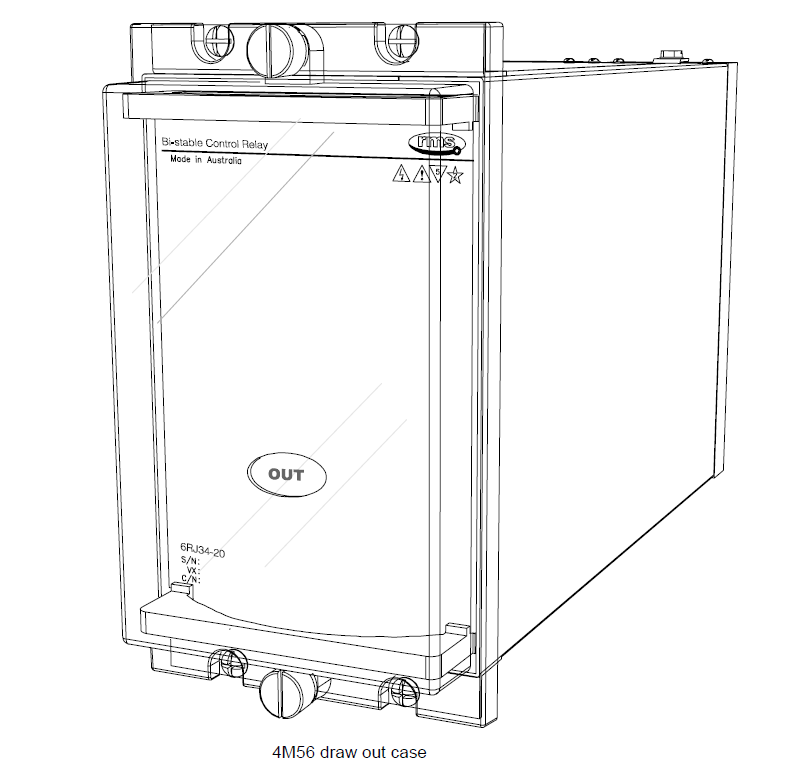

6RJ34-10 Bistable Control Relay

Summary

Features

  • Meets NGTS 2.19.1999
  • Electrical set and reset contacts and flag
  • 10 contact version
  • Electrical reset inhibit function
  • Alternative to MVAJ34 and TR431 relays

Application

The 6RJ34 is a bi-stable control relay designed to switch protection and auto reclosing IN and OUT of service from a remote point via pilot wires.

Application of a control signal to the operate coil inputs will cause the relay to pick up changing the state of the contacts and flag to the OUT condition.

Application of a control signal to the reset coil inputs will cause the relay to drop out reverting the contacts and flag to the IN condition.

The operate and reset coils are automatically protected from thermal damage by a series cut throat contacts once the relay contacts have changed state.

An electrical reset inhibit function is provided to isolate the reset circuit when a voltage is applied to the operate coil. This avoids the possibility of the relay cycling between the IN and OUT state if the operate and reset coils are energized at the same time.

A feature of the design is that the 6RJ34 will neither operate nor reset if 110V AC 50Hz rms is applied across either the operate or reset circuits in accordance with National Grid Company SPEC.NGTS 2.19.1999.

Up to 10 contacts may be specified in any combination with a maximum of 5 break. Where 20 contacts are required refer to the 6RJ34-20 Technical Bulletin.
