General purpose relays
General purpose relays
Our high-quality general purpose relays are applied mainly in industrial and power automation systems, in signaling and protection systems, and in other control and electric drive systems. They are also suitable for more common controlling applications like building automation or HVAC systems.
The basic features of general purpose relays are:
- Contact number: from 1 to 4.
- Rated contact switching currents up to 16 A / depending on the relay type.
- Versions with coil overvoltage suppression.
- Versions with flag indicators and manual relay test pushbuttons with the possibility of latching the normally open contacts closed.
- Mounting sockets for DIN/rail 35mm or PCB soldering.
- Rail sockets equipped with screw terminals or spring terminals.
The main products of Mors Smitt have been successfully applied in industrial automation for many years. Their reliability and quality have been acknowledged by the Customers’ satisfaction.
Most relays are recognized and certified by: C E, Loyds, UL and VDE and meet the requirements of the RoHS directive.
Downloads:
Products:
.jpg)

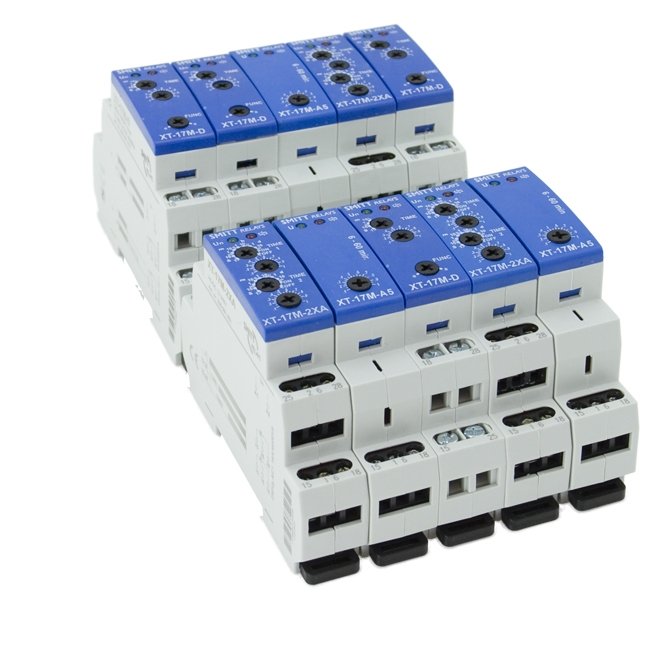

Timer relays
XT-series modular electronic timer relays.
- Single & dual function models
- Multi function models (up to 10 functions).
For general purpose applications. Suitable for 35mm rail (DIN) mounting.
Read more
.jpg)

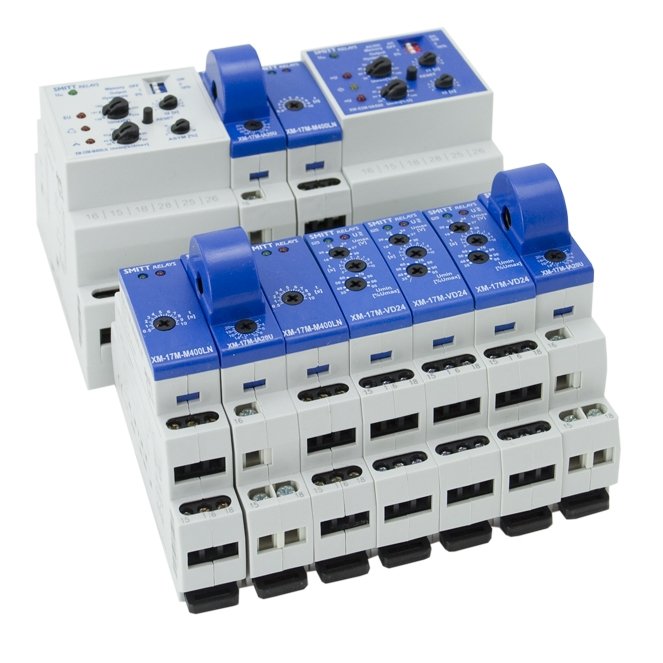

Measuring & monitoring relays
XM-series modular electronic monitoring relays.
- Voltage montoring models (1-phase 3-phase)
- Phase failure, sequence and assymetry models
- Current monitoring models (AC, DC)
Read more
.jpg)
Latching relays
Pulse activated latching relay / bistable relay. For general purpose, industrial applications, switching of AC voltages / resistive loads.Read more
.jpg)

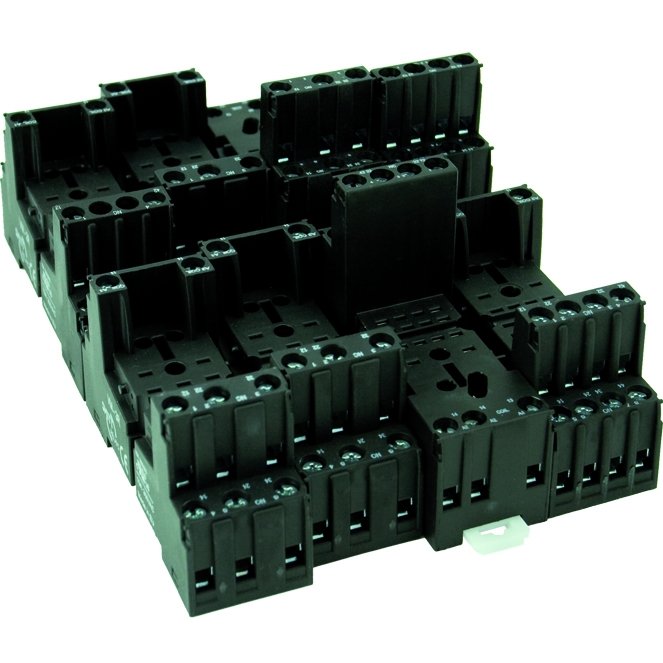

Sockets & accessories for general purpose relays
Complete range of relay sockets & accessories for above mentioned general purpose relay series. Different mounting and conncetion methodes.Read more

Obsolete general purpose relays
Read more
