Test block & plug systems

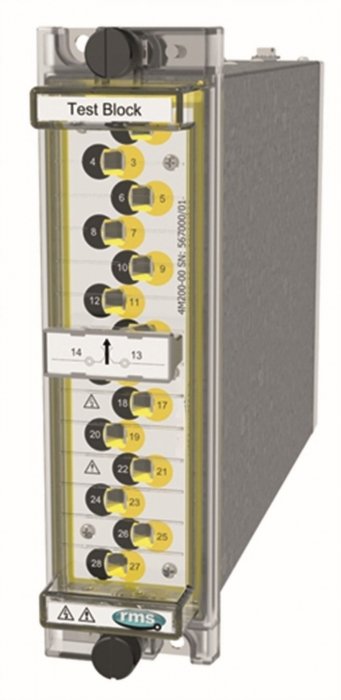

4M200 Test Block system (For Export Markets only)

  • Colour coded finger safe test sockets
  • 14 independent test groups
  • Compatible with industry standard 14 circuit test blocks and test plugs
  • Optional auxiliary supply isolation circuit
  • Identification of CT circuits on front panel
  • Flush panel or rack mounting
  • IEC 60255 Compliant
  • Compatible with industry standard test plugs
  • Optional test plug to block polarizing system
  • Made in Australia
  • For Export Markets only, Australian customers please refer to 7XG22
Test block & plug systems

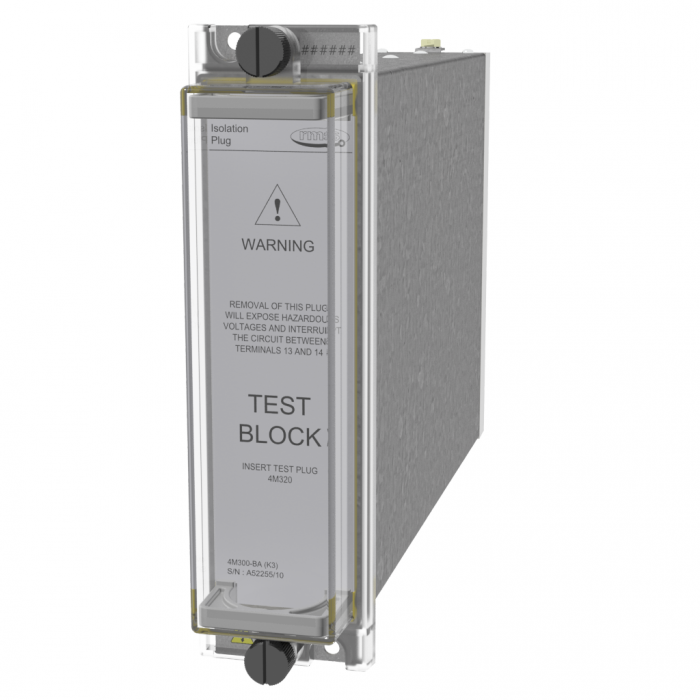

4M300 Test Block System

  • Colour coded finger safe test sockets
  • 14 independent test groups
  • Compatible with industry standard 14 circuit test blocks and test plugs
  • Optional auxiliary supply isolation circuit
  • Identification of CT circuits on front panel
  • Flush panel or rack mounting
  • IEC 60255 Compliant
  • Compatible with industry standard test plugs
  • Optional test plug to block polarizing system
  • Made in Australia
  • For Export Markets only, Australian customers please refer to 7XG22
Test block & plug systems

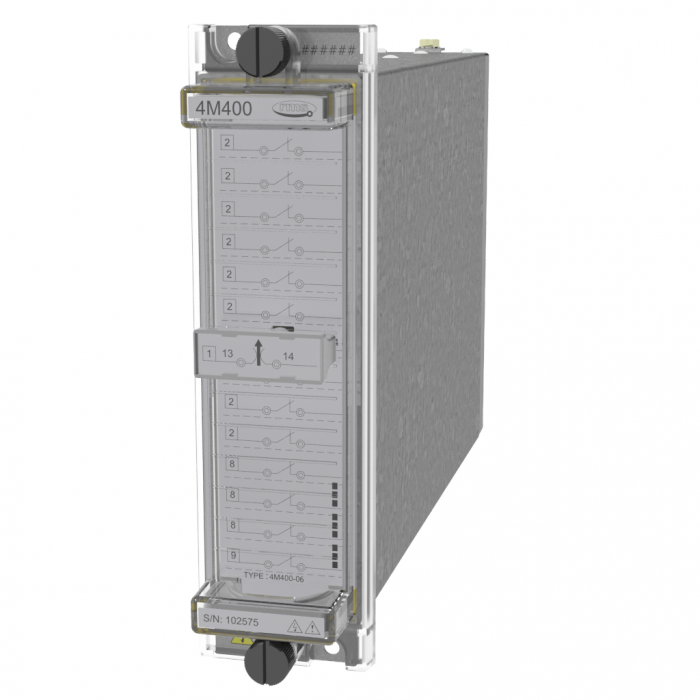

4M400 Flexible and high performance test block sys…

  • 14 independent test groups may be specified with any combination of circuit types
  • Automatic shorting of CT circuits completed in the test block – No test links or operator intervention required
  • Isolation plug provides sequential circuit isolation timing in three (3) stages
  • ‘Finger safe’ test sockets suit standard or shrouded type 4mm banana plugs for direct access to the protection or measurement scheme
  • Clear and concise front panel circuit identification
  • Test plug fitted with insertion handle and thumb screw retention system to enhance operator safety and system security
  • Side label instructions on test plug for changing from normal service to the test condition
  • High current / voltage rating
  • Made in Australia
Test block & plug systems

4M402 Flexible and high performance test block sys…

  • Finger safe test sockets suit standard or shrouded type 4mm banana plugs for direct access to the protection or measurement scheme
  • 28 independent test groups may be specified with any combination of circuit types
  • Automatic shorting of CT circuits completed in the test block – No test links or operator intervention required
  • Isolation plug provides sequential circuit isolation timing in three (3) stages
  • Clear and concise front panel circuit identification
  • Test plug fitted with insertion handle and thumb screw retention system to enhance operator safety and system security
  • Side label instructions on test plug for changing from normal service to the test condition
  • High current / voltage rating
  • Made in Australia
