The Delta relays provides a robust and reliable interface between protection and control system circuits. A more economical alternative to traditional auxiliary, trip and supervision relays, the Delta provides a compact, flexible and high performance solution while meeting relevant IEC standards.

A wide voltage range and standard hand reset flag reduces the number of model variations.

The Delta range is packaged in a size 2, 2U high case that may be flush panel, rack or rail mounted. A plug in terminal block is provided to allow panel pre-wiring. Where more than 4 contacts are required refer to the Alpha Range Technical Bulletin.


Products


Filter
Delta Series: Trip, Auxiliary and Supervision

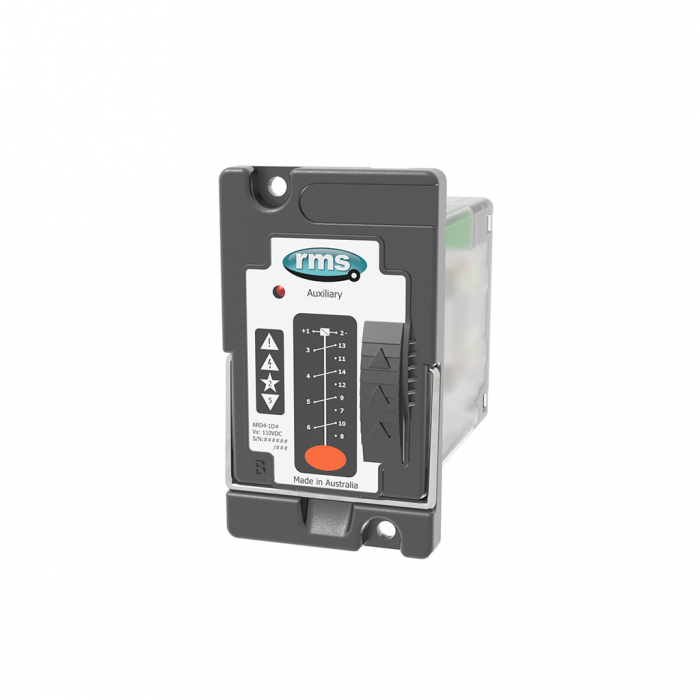

Delta ARD4 Compact electro-mechanical auxiliary re…

  • Self-reset and latching versions
  • Less than 25ms operate time
  • Four heavy duty contacts with magnetic blowouts
  • Hand reset flag
  • Surface or rail mount
  • Flush panel or rack mount
  • Made in Australia
Delta Series: Trip, Auxiliary and Supervision

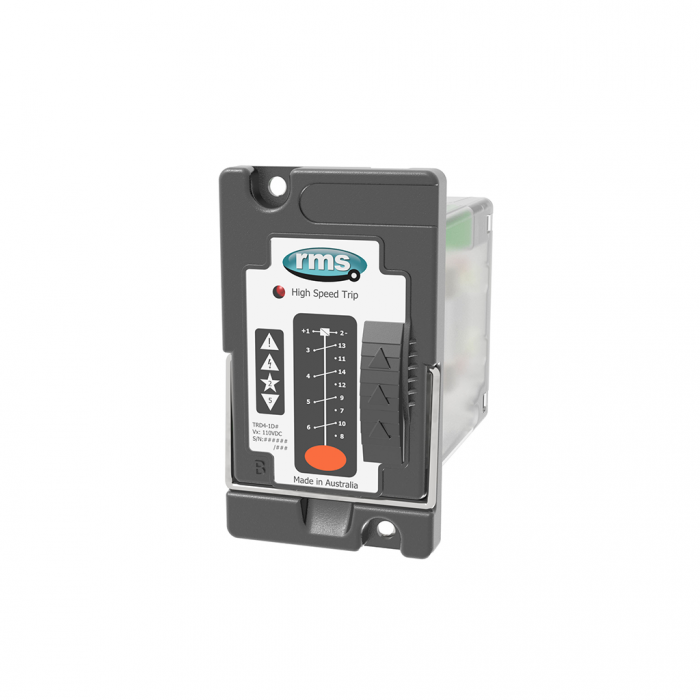

Delta TRD4 Compact electro-mechanical tripping rel…

  • Self-reset and latching versions
  • Less than 25ms operate time
  • Four heavy duty contacts with magnetic blowouts
  • Hand reset flag
  • Surface or rail mount
  • Flush panel or rack mount
  • Made in Australia
Delta Series: Trip, Auxiliary and Supervision

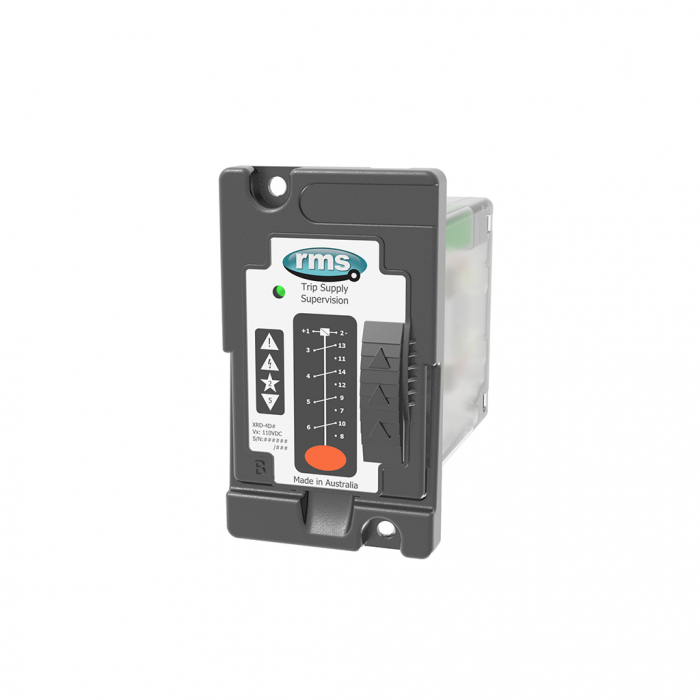

Delta XRD Compact supervision relay

  • High visibility electro-mechanical flag indication drops to indicate supervision alarm condition
  • Supervision Healthy LED
  • Three or four C/O alarm contacts
  • Rated operate voltages available for 24, 30/32, 48, 110, 125, 220, 240 or 250 Volts
  • DC nominal auxiliary supplies
  • Panel, rack or rail mount options
  • Compact size 2, 2U high case
  • Plug-in terminal block
  • M4 screw terminals
Delta Series: Trip, Auxiliary and Supervision

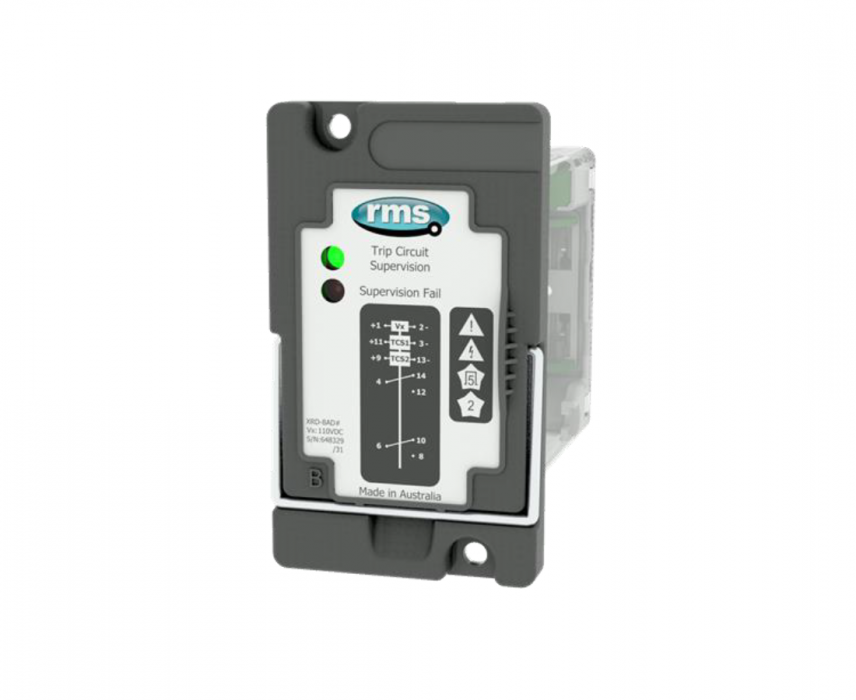

Delta XRD-8 Trip Circuit Supervision Relay

  • Trip circuit supervision for magnetic actuator circuit breakers
  • Auxiliary supply supervision
  • Green Supervision healthy LED
  • Self-reset red Supervision Fail LED
  • Two C/O alarm contacts
  • Rated auxiliary voltages available for 24, 30/32, 48, 110, 125, 220, 240 or 250V dc
  • Panel, rack or rail mount options
  • Compact size 2, 2U high case
  • Plug-in terminal block
  • M4 screw terminals
Delta Series: Trip, Auxiliary and Supervision

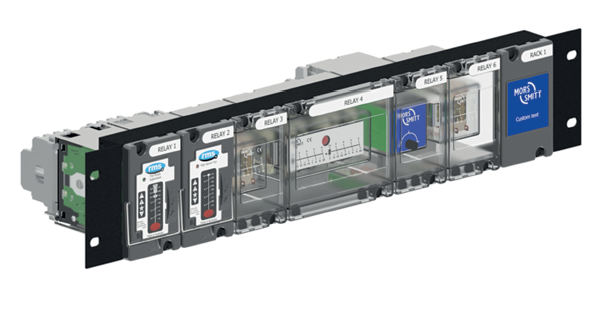

Delta-Flex

  • 2U high 19-inch rack or flush mounting
  • Wide range of auxiliary relay functions
  • Specify components or complete sub-rack system
  • M4 screw terminals suitable for ring lugs
  • Integrated front panel covers
  • Custom panel labelling
