Voltage Protection

2V63 Single Phase AC/DC Voltage Relay

  • AC & DC input versions
  • Heavy duty output contacts with optional magnetic arc blowouts
  • Select number & type of output contacts
  • Self reset LED P/U indication
  • Optional hand reset or self reset mechanical flag
  • Simple & proven circuit design
  • Fixed or adjustable drop out setting
  • May be used in under or over voltage monitoring
  • Custom contact arrangement possible
  • Self powered from sensing input
  • Size 2M draw out case – single element version
  • Size 4M draw out case – dual element version
  • Made in Australia
Voltage Protection

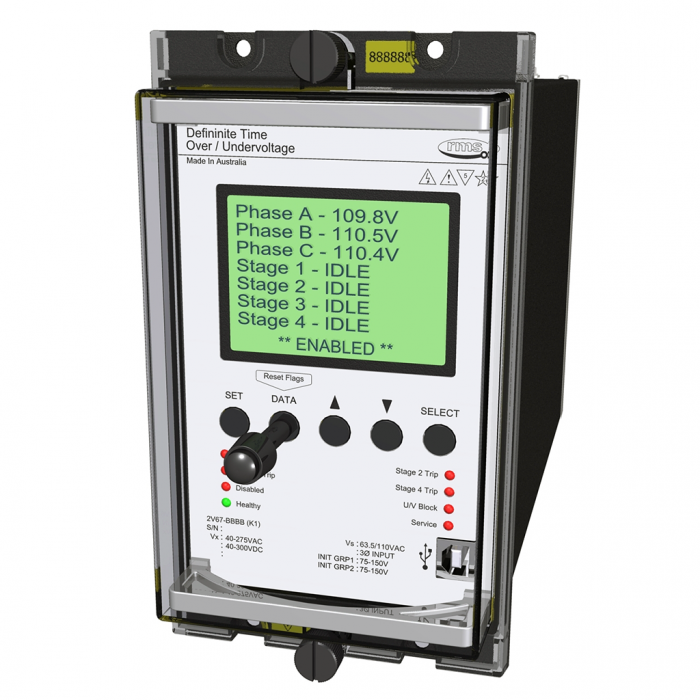

2V67-S Four Stage Voltage Relay

  • uMATRIX PLATFORM
  • Large STN graphics LCD
  • System status LED indicators
  • Simple menu setting procedure
  • 40-300V DC aux. supply
  • 40-275V AC aux. supply
  • 20-70V DC aux. Optional
  • Self diagnosis & fail alarm
  • Size 4 case
  • Made in Australia
Voltage Protection

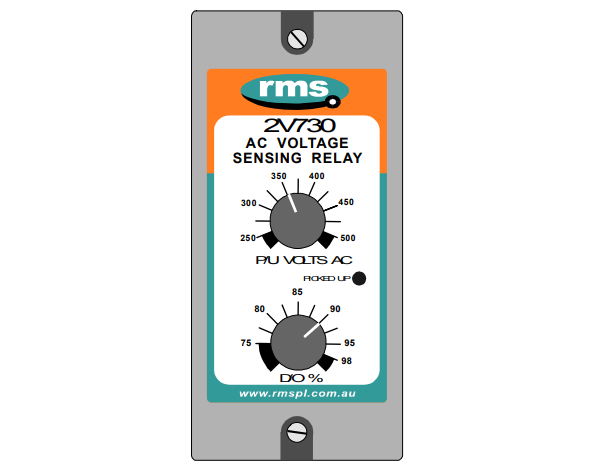

2V730 700 Series AC Voltage Sensing Relay

  • Ten year factory warranty
  • Plug in measuring module
  • Double insulated high impact polystyrol case
  • Termination socket included for surface mounting enabling front or rear connection with optional DIN rail mounting
  • Proven circuit designs based on over 15 years of field service in hundreds of varied & demanding applications
  • Easy to set calibration scales
  • Tolerance to shock & vibration for generator, compressor & mobile applications
Voltage Protection

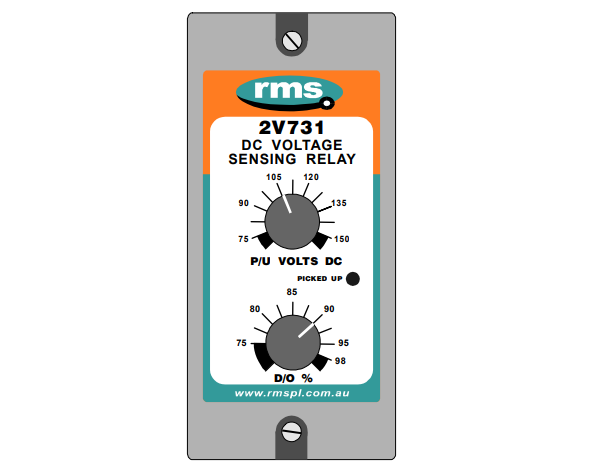

2V731 700 Series DC Voltage Sensing Relay

  • Ten year factory warranty
  • Plug in measuring module
  • Double insulated high impact polystyrol case
  • Termination socket included for surface mounting enabling front or rear connection with optional DIN rail mounting
  • Proven circuit designs based on over 15 years of field service in hundreds of varied & demanding applications
  • Easy to set calibration scales
  • Tolerance to shock & vibration for generator, compressor & mobile applications
Voltage Protection

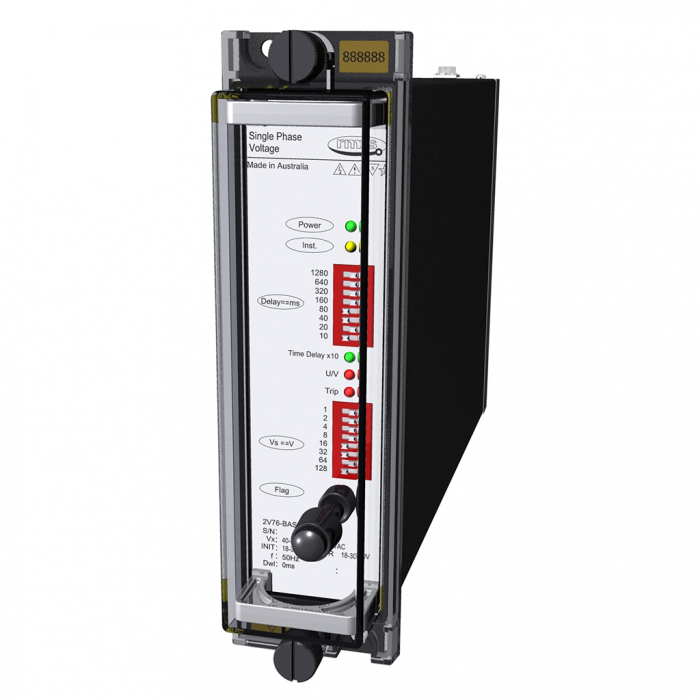

2V76 Single Phase Voltage Relay

  • Selectable over or under voltage function
  • Wide voltage monitoring range:
  • 1-255V AC in 1V steps
  • Selectable 3rd harmonic filtering for neutral displacement applications
  • Wide range auxiliary supply:
  • 40-275AC & 40-300V DC
  • 20-70V DC aux. Optional
  • Auxiliary supply fail alarm
  • Instantaneous p/u LED
  • Non-volatile trip indication
  • 5 C/O output contacts
  • 2 contacts may be configured for instantaneous operation
  • Two time delay ranges:
  • 0-2.55s in 10ms steps
  • 0-25.5s in 100ms steps
  • Relay enable status input
  • Push button & status input to reset trip LED
  • Size 2M draw out case
  • Made in Australia
