Timing Relays

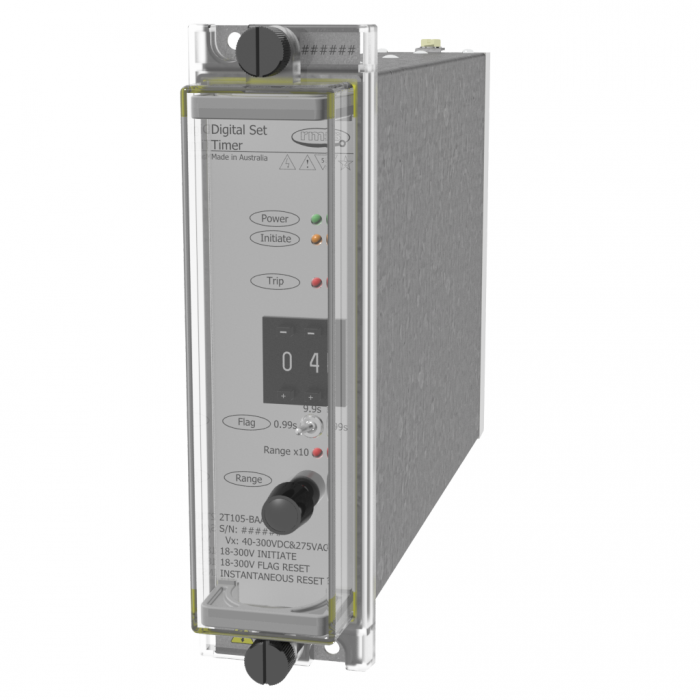

2T105 Multi Range Digital Setting Time Delay Relay

  • Four time ranges 0-0.99s, 0-9.9s, 0-99s, 0-990s
  • High accuracy & repeatability – timing compensated for output relay delay
  • Time settings easily selected by digital thumb wheel switches
  • Selectable delay operate or delay release
  • Optional reset functions Instantaneous (Fast), definite time, count down „ 4 C/O output contacts
  • Wide auxiliary supply range with fail alarm contact
  • Timing in progress LED
  • Non-volatile trip indication
  • Multi voltage timer initiate input
  • Multi voltage flag reset input
  • Size 2M draw out case
Timing Relays

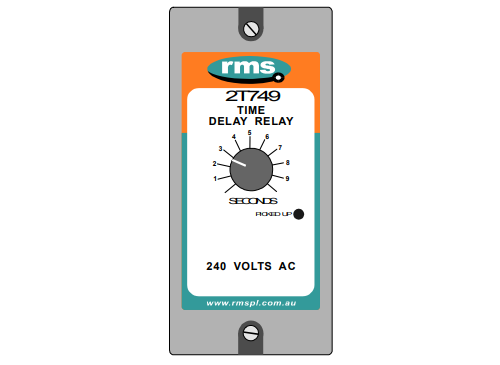

2T749 700 Series Delay On Timer Relay

  • Delay operate timer
  • Ten year factory warranty
  • Plug in measuring module
  • Double insulated high impact polystyrol case „ Termination socket included for surface mounting
  • enabling front or rear connection with optional DIN rail mounting
  • Proven circuit designs based on over 15 years of field service in hundreds of varied & demanding applications
  • Easy to set calibration scales
  • Tolerance to shock & vibration for generator, compressor & mobile applications
Timing Relays

2T751 700 Series True Delay Off Timer Relay

  • Delay operate timer
  • Ten year factory warranty
  • Plug in measuring module
  • Double insulated high impact polystyrol case „ Termination socket included for surface mounting
  • enabling front or rear connection with optional DIN rail mounting
  • Proven circuit designs based on over 15 years of field service in hundreds of varied & demanding applications
  • Easy to set calibration scales
  • Tolerance to shock & vibration for generator, compressor & mobile applications
Timing Relays

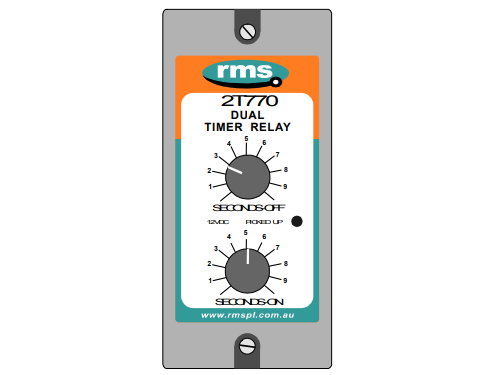

2T770 700 Series Recycling Timer

  • Recycling Timer
  • Ten year factory warranty
  • Plug in measuring module
  • Double insulated high impact polystyrol case
  • Termination socket included for surface mounting enabling front or rear connection with optional DIN rail mounting
  • Proven circuit designs based on over 15 years of field service in hundreds of varied & demanding applications
  • Easy to set calibration scales
  • Tolerance to shock & vibration for generator, compressor & mobile applications
