1X Series Supervision relays


1X Series Supervision relays


The 1X serie is comprised of an electromechanical voltage operated relay which is wired across the circuit being monitored. The relay may be ordered to operate in one of four (4) different application modes as described in the Technical Bulletin.

The relay is designed for flush mounting utilizing a single 25mm diameter mounting hole which also houses the large LED indicator. Electrical termination is made via four screw terminals on the rear of the case. This terminal block is of a plug in type with integrated retention screws further simplifying installation.


Products

Filter
1X Series Supervision relays

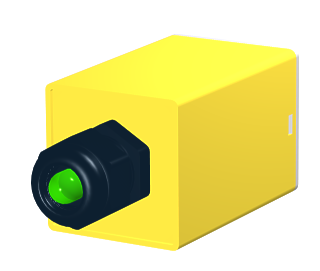

1X10 General Purpose Supervision Relay

  • 1X10 fuse supervision
  • Compact design
  • Simple through hole panel mount
  • De-mountable terminal block with retention screws
  • Extra large LED
  • Remote indication via relay output contact
  • Custom front panel label
  • Cost effective
  • Range of supervision voltages
1X Series Supervision relays

1X20 General Purpose Supervision Relays

  • 1X20 Trip coil & DC supply supervision
  • Compact design
  • Simple through hole panel mount
  • De-mountable terminal block with retention screws
  • Extra large LED
  • Remote indication via relay output contact
  • Custom front panel label
  • Cost effective
  • Range of supervision voltages
1X Series Supervision relays

1X30 Trip Circuit Supervision Relay

  • Monitors trip circuit supply
  • Monitors trip circuit wiring integrity
  • „Monitors circuit breaker operate coil continuity
  • Monitors circuit breaker 52a and 52b auxiliary switches in open and closed positions
  • >300ms time delay to avoid nuisance alarms during normal CB operation
  • „Compact design
  • „Simple through hole panel mount
  • De-mountable terminal blocks complete with locking screws
  • Extra large LED
  • Remote indication via one output contact
  • Custom front panel label „ Cost effective
  • Range of supervision voltages
1X Series Supervision relays

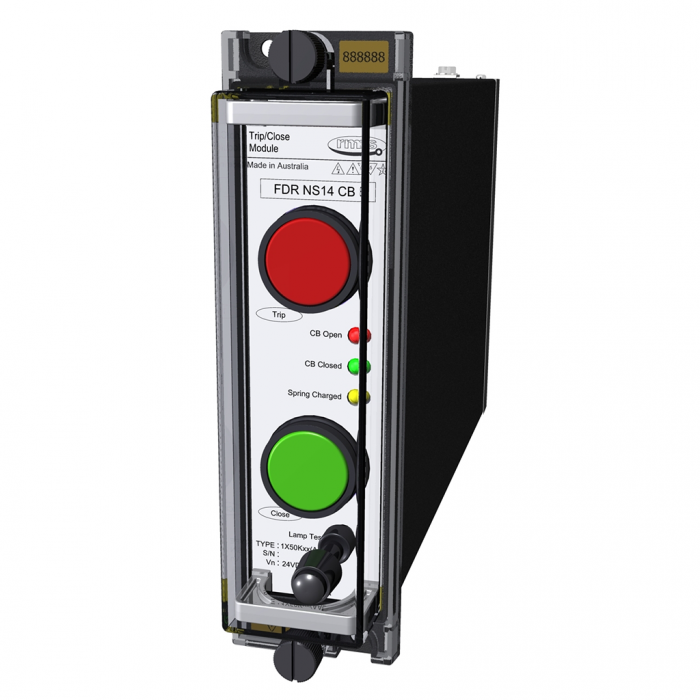

1X50 CB Trip & Close Module

  • Large size push buttons
  • High visibility CB status LED’s
  • Suitable for 24, 32, 48, 110/125 & 240/250V DC supplies
  • Optional CB spring charge status LED
  • Standard panel cover
  • Optional locking cover
  • Heavy duty output contacts
  • Optional custom engraving
  • Optional lamp test button & output contact
  • Optional integrated control circuit steering diodes
  • Rugged construction
  • 4U rack or flush mounting
  • Size 2M draw out case
  • Made in Australia
