Sockets


Sockets

Filter
Sockets

A104 Key receptacle

  • Key receptacle
  • For V10 socket
Sockets

A109 Rail clip

Obsolete
  • Rail clip
  • For V10 socket
Sockets

A110 Retaining clip

Obsolete
  • Retaining clip
  • For V10 socket
Sockets

COR NJ relay socket

  • Rear connection, with single faston 5 mm
  • No internal soldering / connections
  • For panel mount
  • Wire locking spring
  • COR NJ suitable for all C-relays and modules (C, SC, CM)
  • -40 °C...+80 °C operating temperature
Sockets

COR NK / COR PA / COR SA Relay socket

  • Rear connection, with single faston 5 mm
  • No internal soldering / connections
  • For panel mount
  • Spring lock
  • COR NK, COR PA suitable for all 300 series relays (303, 310 relays)
  • COR SA suitable for all 303S relays
  • -40 °C...+80 °C operating temperature
Sockets

COR OU relay socket

  • Rear connection, with single faston 5 mm
  • No internal soldering / connections
  • For panel mount
  • Spring lock
  • COR OU suitable for all 401 and 407 relays
  • -40 °C...+80 °C operating temperature
Sockets
New product

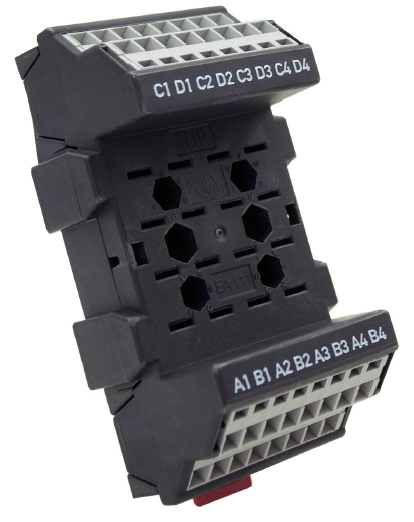

EA 111 relay socket

  • Front connection
  • Cage clamp connection
  • Up to 2,5 mm2 wire terminal
  • No internal soldering / connections
  • Wire locking spring
  • For surface or 35 mm rail
  • A 111 AF suitable for all A relays and modules
  • EA 111 BF suitable for all B relays
  • EA 111 EF suitable for all E relays
  • -40 °C...+80 °C operating temperature
Sockets

EA 112 relay socket

  • Rear connection, with crimp contacts
  • No internal soldering / connections
  • For panel/flush mount
  • Wire locking spring
  • EA 112 A suitable for all A series relays and modules (A 400, AK, AM, AG, TALOR, TAC)
  • EA 112 B suitable for all B series relays (B 400, BK, BM, BG, TBBU)
  • -40 °C...+80 °C operating temperature
Sockets

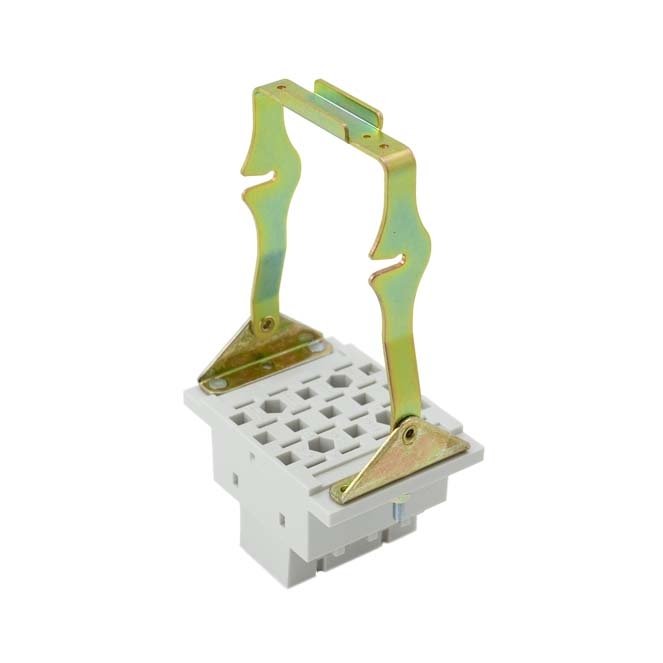

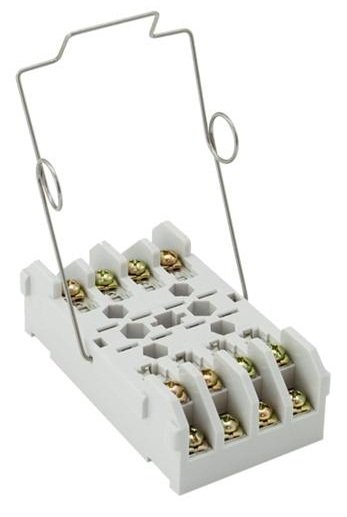

EA102 relay socket

  • Rear connection, with double faston 5 mm
  • No internal soldering / connections
  • For panel mount
  • Locking bracket or wire locking spring
  • EA 102A suitable for all A series relays and modules (A 400, AK, AM, AG, TALOR, TAC)
  • EA 102B suitable for all B series relays (B 400, BK, BM, BG, TBBU)
  • -40 °C...+80 °C operating temperature
Sockets

EA103 relay socket

  • Front connection, with screw terminals
  • No internal soldering / connections
  • For surface or optional 35 mm rail mount
  • Wire locking spring
  • EA 103 AF suitable for all A series relays and modules (A 400, AK, AM, AG, TALOR, TAC)
  • EA 103 BF suitable for all B series relays (B 400, BK, BM, BG, TBBU)
  • -40 °C...+80 °C operating temperature
Sockets

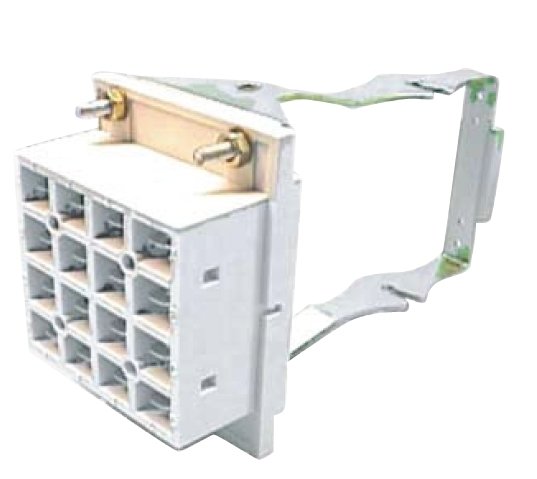

EA104 relay socket

  • Rear connection, with single faston 5 mm
  • No internal soldering / connections
  • For panel mount
  • Locking bracket or wire locking spring
  • EA104 A suitable for all A series relays and modules (A400, AK, AM, AG, TALOR, TAC)
  • EA104 B suitable for all B series relays (B400, BK, BM, BG, TBBU)
  • -40 °C...+80 °C operating temperature
Sockets

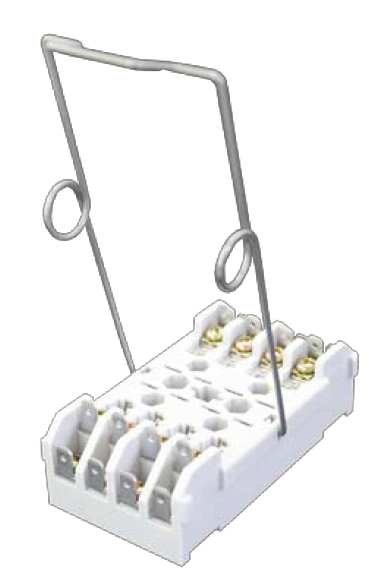

EA105 relay socket

  • Front connection, with single faston
  • No internal soldering / connections
  • For surface or optional 35 mm rail mount
  • Wire locking spring
  • EA 105 AF suitable for all A series relays and modules (A 400, AK, AM, AG, TALOR, TAC)
  • EA 105 BF suitable for all B series relays (B 400, BK, BM, BG, TBBU)
  • -40 °C...+80 °C operating temperature
Sockets

V10 socket - Screw terminal, wall mount

Obsolete
  • Surface / wall mount
  • Optional 35 mm rail mount with A109 rail clip
  • Sturdy screw terminals
  • Space saving
  • Suitable for all CU relay series
  • Up to two wires of 1.8 mm2 per connection terminal
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Sockets

V11 socket - Screw terminal, wall mount, protectio…

Obsolete
  • Surface / wall mount
  • Optional 35 mm rail mount with A109 rail clip
  • Sturdy screw terminals
  • Back EMF protection diode
  • Space saving
  • Suitable for all CU relay series
  • Up to two wires of 1.8 mm2 per connection terminal
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Sockets

V12 socket - Screw terminal, wall mount, 4 kV insu…

Obsolete
  • Surface / wall mount
  • Optional 35 mm rail mount with A109 rail clip
  • Sturdy screw terminals
  • 4 kV insulation between coil and contacts
  • Space saving
  • Suitable for CU-U200/300-U relay series only
  • Up to two wires of 1.8 mm2 per connection terminal
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Sockets

V13 socket - Screw terminal, wall mount, diode and…

Obsolete
  • Surface / wall mount
  • Optional 35 mm rail mount with A109 rail clip
  • Sturdy screw terminals
  • Back EMF protection diode
  • LED indicator
  • Space saving
  • Suitable for all CU-U200/300-U relay series only
  • Up to two wires of 1.8 mm2 per connection terminal
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Sockets

V14 socket - PCB mount

Obsolete
  • PCB mount
  • Space saving
  • Suitable for all CP relay series
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Sockets

V15 socket - Screw terminal, wall mount, diode and…

Obsolete
  • Surface / wall mount
  • Optional 35 mm rail mount with A109 rail clip
  • Sturdy screw terminals
  • Back EMF protection diode
  • Space saving
  • Suitable for all CU-U200-D relay series
  • Up to two wires of 2.5 mm2 per connection terminal
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Sockets
New product

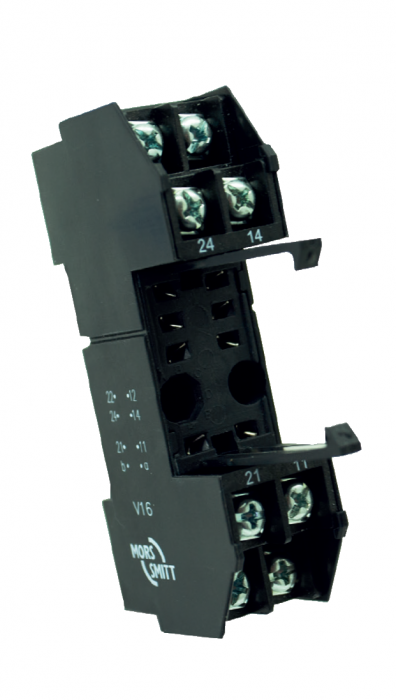

V16 socket - Screw terminal, wall / rail mount

  • Surface / wall and 35 mm rail mount
  • Screw terminals
  • Integrated retaining clip
  • Space saving
  • Suitable for all CU relay series
  • Up to two wires of 4.0 mm2 per connection terminal
  • Positive mechanical keying
  • Optional diode or double zener protection device
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Sockets

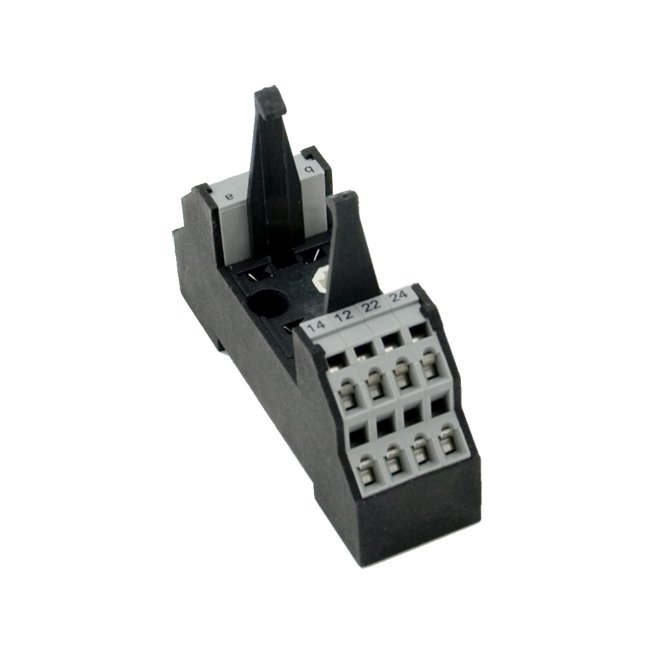

V17 socket - Spring terminal, wall / rail mount

  • Surface / wall and 35 mm rail mount
  • Spring clamp terminals
  • Integrated retaining clip
  • Space saving
  • Suitable for all CU relay series
  • Up to two wires of 2.5 mm2 per connection terminal
  • Positive mechanical keying
  • Optional diode or double zener protection device
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Sockets
New product

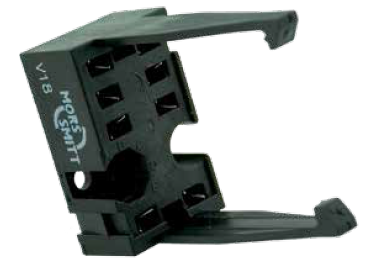

V18 socket - PCB mount

  • PCB mount
  • Integrated retaining clip
  • Space saving
  • Suitable for all CU relays
  • Postive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Sockets

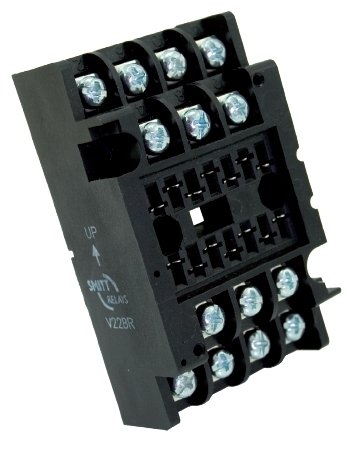

V22BR socket - Screw terminal, wall mount

  • Surface / wall mount
  • Sturdy screw terminals
  • Suitable for 9 mm ring tabs
  • Suitable for all D-U relay series
  • Up to two wires of 2.5 mm2 per connection terminal
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Sockets

V23 socket - Screw terminal, wall/rail mount

  • Surface / wall and 35 mm rail mount
  • Sturdy screw terminals
  • No internal solderings / connections
  • Touch proof IP20
  • Height saving 35 mm rail mounting
  • Suitable for all D-U relay series
  • Up to two wires of 2.5 mm2 per connection terminal (7.5 mm wide tabs)
  • Positive mechanical keying
  • Trifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Sockets

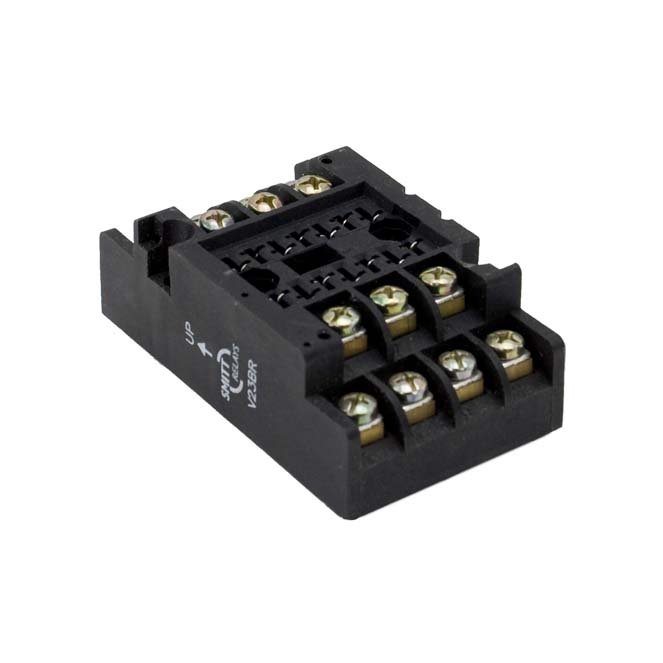

V23BR socket - Screw terminal, rail mount

  • 35 mm rail mount
  • Sturdy screw terminals
  • Suitable for 9 mm ring tabs
  • Height saving 35 mm rail mounting
  • Suitable for all D-U relay series
  • Up to two wires of 2.5 mm2 per connection terminal
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Sockets

V24 socket - Faston terminal, wall mount

Obsolete
  • Surface / wall mount
  • Sturdy faston terminals
  • Space saving
  • Suitable for all D-U relay series
  • 1 faston 6.3 x 0.8 mm or 2 faston 2.8 x 0.8 mm
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
