Obsolete Test & Measurement Products

NI 11 Multimeter / clamp meter

626005032 (OBSOLETE)
Summary

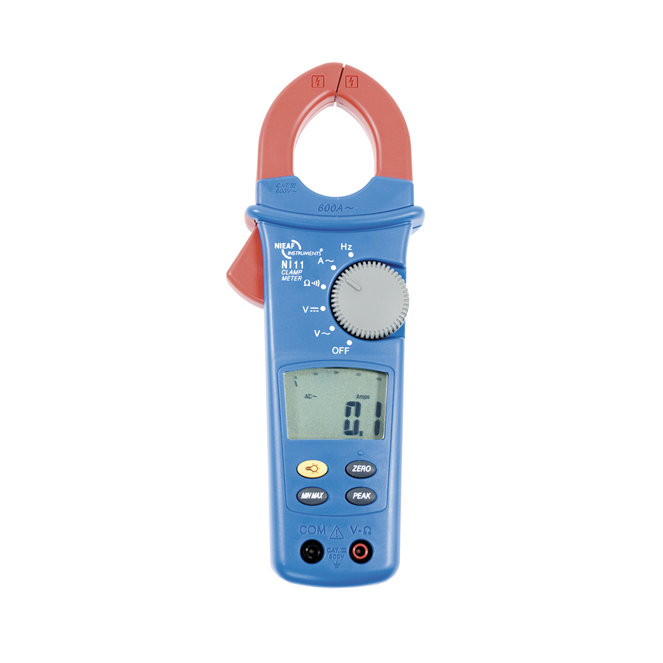

Ergonomic current clamp

This elegant shaped, ergonomic current clamp is suitable for multiple measurements, such as AC currents, voltages, resistance and frequency. The integrated LCD-display is included with bargraph and backlight. This allows the user to use the clamp in dark applications and surroundings.


Features of the NI 11

  • Min – max hold
  • Auto ranging
  • Continuity test
  • Auto power off
  • Backlight

Including

  • Test leads
  • Bag
  • Batteries
  • Manual
Function Maximum range Accuracy
Voltage
600 VAC
600 VDC
+ 1.0 % + 5d
+ 0.7 % + 2d
Current 600 AAC + 1.9 % + 5d
Resistance 400 Ω + 1.0 % + 3d
Frequency 500 Hz + 0.1 % + 2d
Specifications
Max. conductor diameter 35 mm
Max. clamp opening 40 mm
Display resolution 4000d
Overcurent category CAT II 1000 V / CAT III 600 V
Standard EN 61010-1
Power supply 1x 9 V battery
Dimensions 220 x 70 x 50 mm
Weight ± 360 g (incl. battery)
