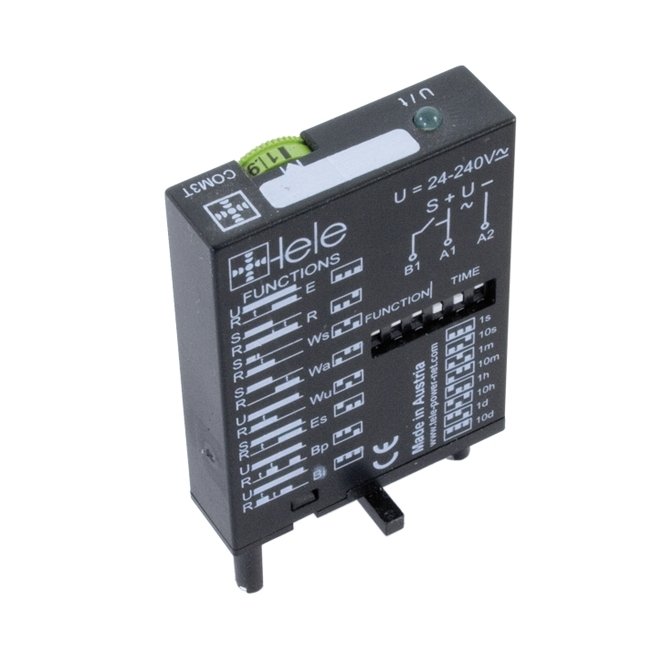

COM-3TP timer module
321000205Summary
Multifunctional timer module.
Suitable for plug-in in VG-8T and VG-11T sockets.
8 time ranges (0,05sec ... 240h). 8 different time functions.
Function and time setting by dip-switch for fine-tuning.
COM3T timer module functions;
-
F - Delay on
-
R - Delay off (+control contact)
-
Ws - One shot-on (+control contact)
-
Wa - One shot-off (+control contact)
-
Wu - One shot-on
-
Es - Delay-on (+control contact)
-
Bp - Flasher, starting off
-
Bi - Flasher, starting on
Make a general purpose G-series relay into a multifunctional timer relay.
Weight is just 15 gram!
