MultiPAT XE626000514 (OBSOLETE)

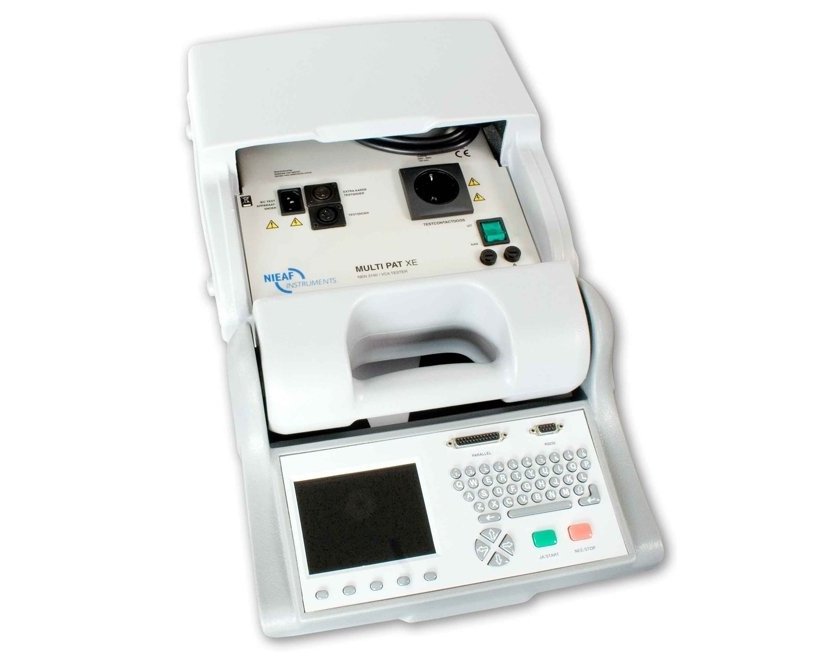

Automatic tool testerThe MultiPAT XE is an extremely versatile, automatic device tester with a robust portable housing. The tester is designed for testing in accordance with the standards EN 50110-1 / 2 and NEN 3140. The tester is suitable for testing single-phase and three-phase devices. The instrument is equipped with a QWERTY keyboard and a large grass LCD display with lighting. The display shows the status of the entire check / cycle during all measurements and offers a very high degree of user-friendliness.
- Storage of a maximum of 2400 test results, including additional information such as location, department, date and time
- Memory space available for personal notes
- Automatic calculation of the earth conductor resistance limits
- Creation of master data on the tester itself (in combination with optional PATManager software)
- Measuring protection line and leakage current, even with multiple earth connections
- QWERTY keyboard with shortcut keys
- Real-time clock
- Connections for barcode scanner, chip reader and serial or parallel printer
- Generate automatic test codes
- Check whether the correct connection has been made for the measurement in question, so-called detection test • Special measurement functions for checking IT devices
- Upload of max. 500 results
The tester is supplied complete with test leads. To increase ease of use, an additional test probe is also available that can be used instead
of the clamp.
- Test lead
- IEC cable
- RS232 cable
- Instruction manual
- Demo version PATManager
- Declaration of Conformity
1-phase adapter 1PNA16626000018
Gradient adapter for testing devices with a 1PNA16 connection (1 phase, zero + earth).
1-fase verloopadapter 1PNA32626000019
Adapter for testing devices with a 1PNA32 connection (1 phase, zero + earth).
3-fase verloopadapter 3PA16626000046
Adapter for testing devices with a 3PA16 connection (3 phase + earth)
3-fase verloopadapter 3PA32626000048
Adapter for testing devices with a 3PA32 connection (3 phase + earth).
3-phase adapter 3PA63626000199
Adapter for testing devices with a 3PA63 connection (3 phase + earth).
3-fase verloopadapter 3PNA16626000047
Gradient adapter for testing devices with a 3PNA16 connection (3 phase, zero + earth).
3-fase verloopadapter 3PNA32626000049
Gradient adapter for testing devices with a 3PNA32 connection (3 phase, zero + earth).
3-phase adapter 3PNA63626000200
Adapter for testing devices with a 3PNA63 connection (3 phase, zero + earth).
Barcode scanner with an RS232 connection, for fast and error-free device identification.
For recording test data, diameter 33 mm.
Scan-it MX RFID scanner626000564
Complete scanner for writing and reading RFID chips at 13.56 MHz.
Patmanager RS232 kabel500181372
IEC cable for carrying out a cable test with passage in combination with a Nieaf-Smitt device tester.

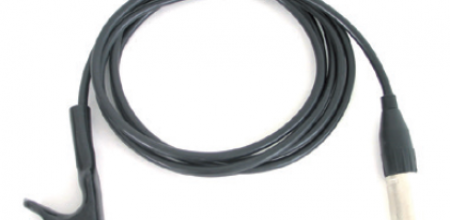

Ground connection cable for MultiPAT XE626000447
Ground connection cable for MultiPAT XE
USB / RS232 adapter626000664
If your tester is equipped with a serial RS 232 connection and your computer / notebook does not have this connection, you must use a USB to serial coverter cable.
Set of 250 pre-printed self-adhesive barcode labels.
Inspection stickers NEN3140626000281
Set of 100 NEN 3140 self-adhesive inspection stickers, diameter 25 mm, with date stamp.
Inspection cutting pliers626000283
NEN 3140 stickers nippers, simply cut the inspection date in a NEN 3140 sticker.
Zekering 16 A / 500 V626006020
Zekering van 16 A / 500 V, geschikt voor de MultiPAT- lijn.
3-fase adapter626000817, 626000818, 626000831
- For measuring real leakage current of 3-phase equipment
- Article numbers:
- 626000817 (16 A)
- 626000818 (32 A)
- 626000831 (63 A)
