6R Series: Trip, Auxiliary and Supervision

6R MATRIX Auxiliary(6RM), Trip(2HSM) & Supervision(1TM)

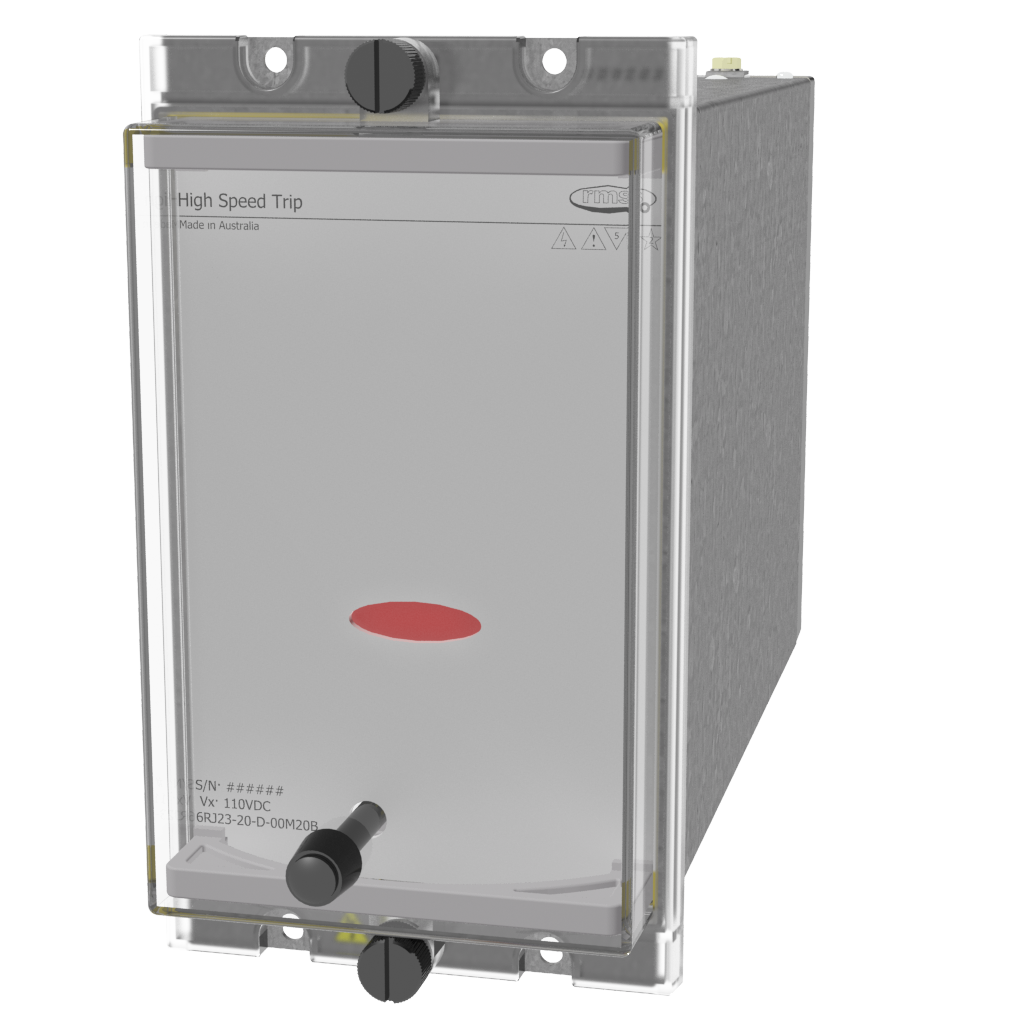

  • High Speed Trip (2HSM)
  • Auxiliary (6RM)
  • Supervision (1TM)
  • 24, 32, 48, 110, 125 or 250 V DC Operate & reset coils available
  • Range of function types
  • Custom contact configuration
  • Fine silver contacts ensuring low contact resistance & high reliability
  • High visibility electro-mechanical flag indication
  • Optional magnetic blowouts to improve contact switching capability
  • Optional time delay slugs to provide delayed pickup or drop out
  • Rack or flush mounting
  • Draw out relay module
  • M4 screw terminals
  • Rugged modular construction
  • Made in Australia


The 6R MATRIX range has been developed to provide design engineers with a modular system of auxiliary relays to meet a wide variety of system configurations.

The 6R MATRIX system provides design engineers a high degree of flexibility to specify a custom relay configuration (Contacts, voltage, function, elements per case etc).

Alternatively, the 6R MATRIX Pre-defined range is suitable for comparison to industry standard models. Based on our well proven 6R heavy duty control relay, the 6R MATRIX system offers numerous benefits.
