Auto Reclose and Sync Check

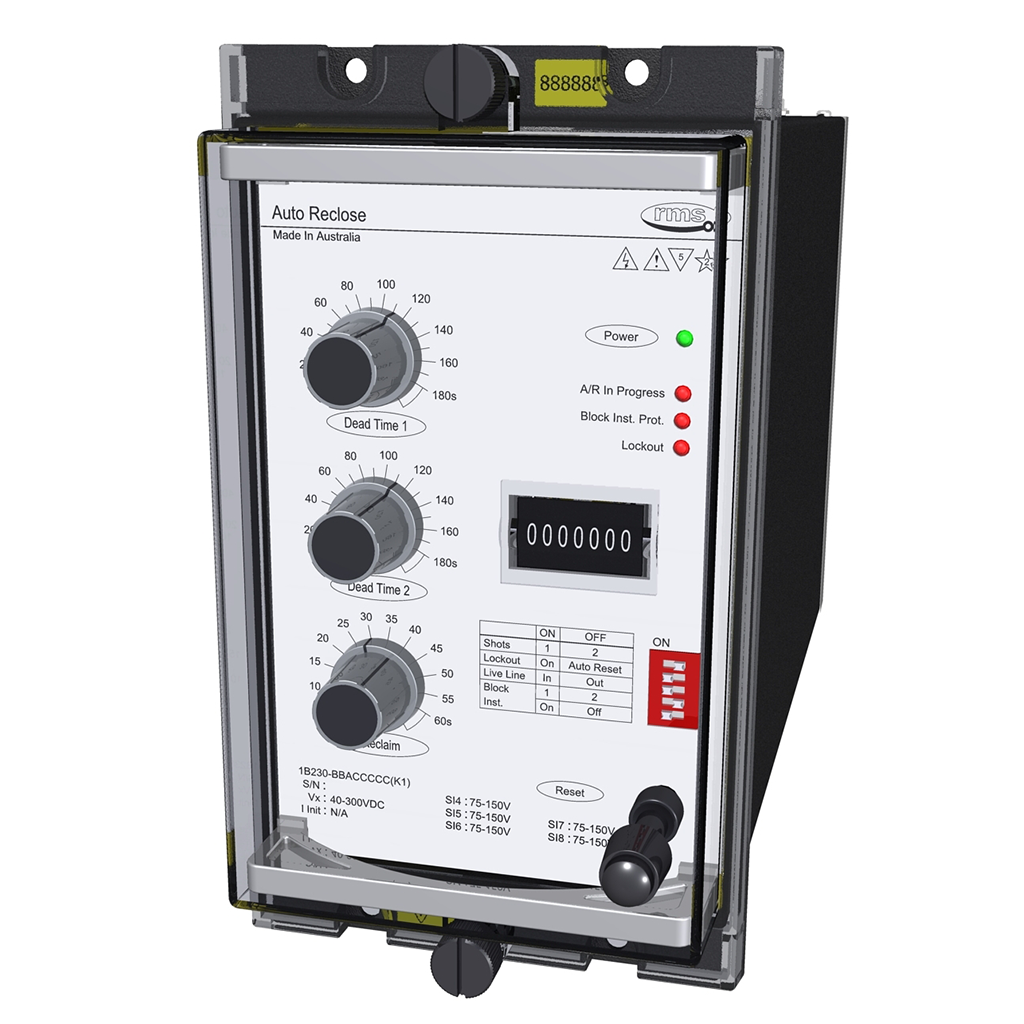

1B230 Auto Reclose Relay

Obsolete
Summary

This product is obsolete.



Features

  • Single or double shot reclose with selectable auto reset mode
  • Shunt initiate input
  • Optional series initiate input
  • Safe to reclose input
  • Line voltage interlock
  • CB reclose spring status input to defer auto reclose pulse until fully charged
  • Lockout LED indication
  • Drive to lockout input
  • Remote reset input
  • Reclose in progress LED
  • Instantaneous protection inhibit output & LED indication
  • Wide auxiliary supply range with fail alarm contact
  • Independently adjustable dead time delay per shot
  • Common adjustable reclaim time delay
  • Optional reclose counter
  • Simple rugged design
  • Size 4M draw out case
  • Made in Australia


Description

Operating records for overhead power lines reveal that most faults are of a transient nature (e.g. lightning induced) & that service interruptions may be minimized by use of automatic reclosing of circuit breakers. An automatic reclosure of the circuit breaker, after the fault clears, provides improved service continuity & system stability. The 1B230 Series Reclose Relay provides for single or double shot automatic reclosing of circuit breakers, following interruption of supply due to a fault in the system.
