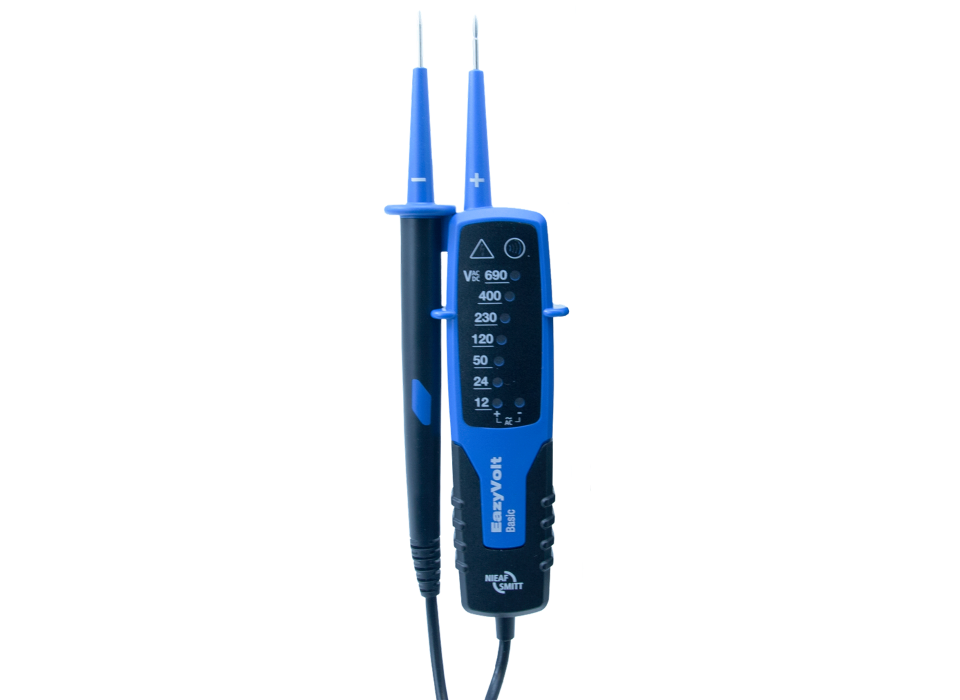

EazyVolt Basic Voltage Tester

626002000
Summary

Voltage tester

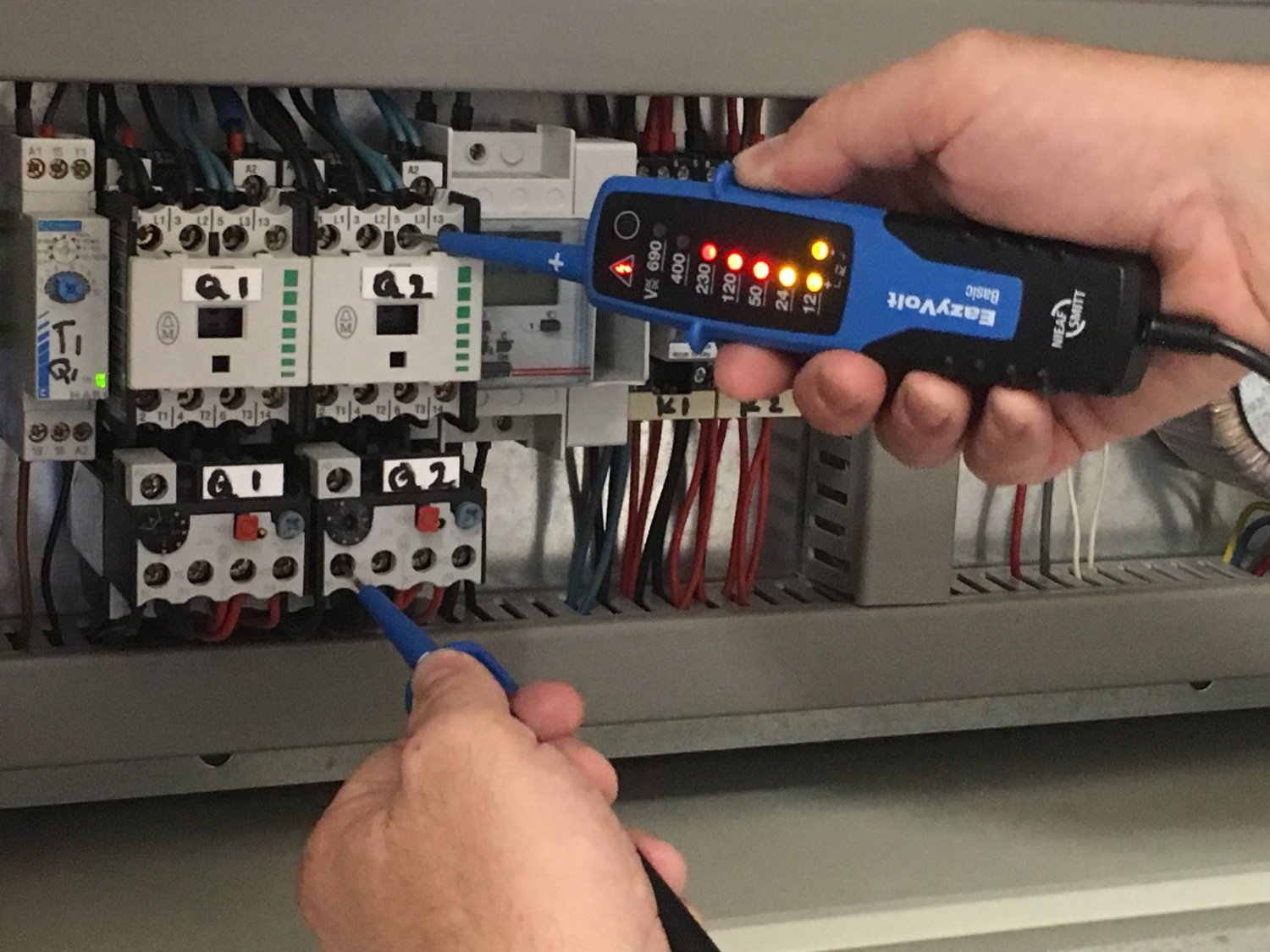

The EazyVolt Basic is a compact reliable robust automatic voltage tester up to 690V, with the following functions:

  • Measuring AC voltage
  • Measuring DC voltage
  • Singel-Pole Phase detection
  • Continuity

Features

  • Fully automatic
  • Fail safe (no battery for VAC/DC measurement)
  • Audible sound (when battery is OK)

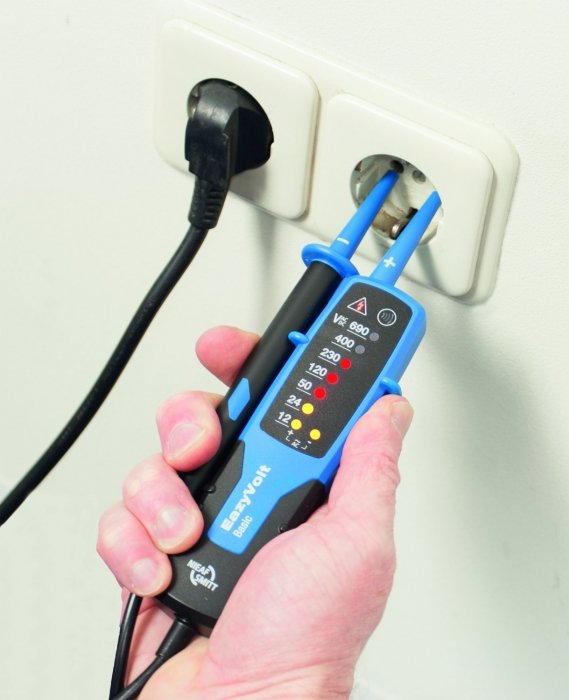

  • Schuko outlet compliant (19 mm)
  • 1 hand operation

Including

  • Batteries
  • Manual

Specifications

Function
Range
Voltage
10…690V AC (40…70Hz), 10…690V DC(±)
Continuity
 0…500kΩ + 50%
Specifications

Auto power on
 >12 VAC/DC
LED resolution
12/24/50/120/230/400/690V
Voltage detection
Automatic
Response time

Frequency range
50...60 Hz
Continuity
0…500kΩ + 50%
Over voltage protection CAT III/600V / CAT II/690V
Supply 3V (IEC R03 1.5V x 2)
IP protection IP 54
Standard
EN/IEC 61243-3:2014
Dimensions 221 x 61 x 27 (mm)
Weight 155g (incl. batteries)
