Obsolete Railway Relay Sockets

V94 socket - Faston terminal, wall mount 8 pole

Obsolete
Summary

This product is no longer available. The replacement sockets are the V93 and the V99.

Click here to go to the product page of the V93.

Click here to go to the product page of the V99.

Description

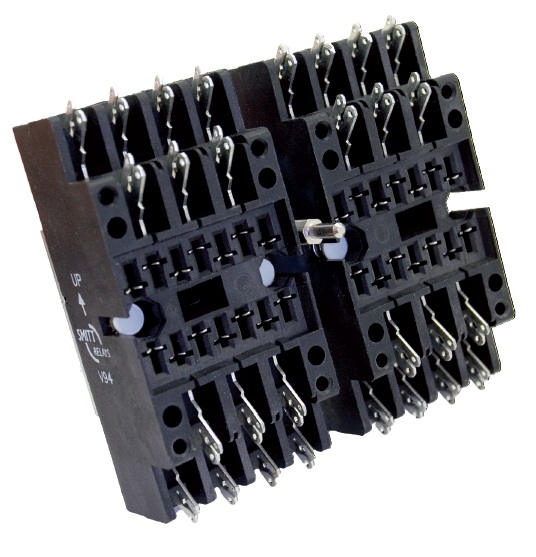

The V94 is a surface / wall mount relay socket. The V94 socket has one terminal per relay contact with tabs for one faston of 6.3 x 0.8 mm or two fastons of 2.8 x 0.8 mm.

To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays.

Clear UP arrow for correct mounting.


Application

The V94 relay socket is suitable for general railway applications with a space saving design. Installation and replacement of relays is made easy and cost saving. No maintenance is required for the user.

Suitable for all D8 and KDN relay series.



Features

  • Surface / wall mount
  • Sturdy faston terminals
  • Space saving
  • Suitable for all D8 and KDN relay series
  • 1 faston 6.3 x 0.8 mm or 2 faston 2.8 x 0.8 mm
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID

Benefits

  • Proven reliable
  • Long term availability
  • Easy to maintain
  • Low life cycle cost
  • No maintenance

Railway compliancy

  • EN 50155 Electronic equipment used on rolling stock for railway applications
  • IEC 60571 Electronic equipment used on railway vehicles
  • NF F 16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
  • NF F 62-002 On-off contact relays and fixed connections
