Obsolete Railway Relay Sockets

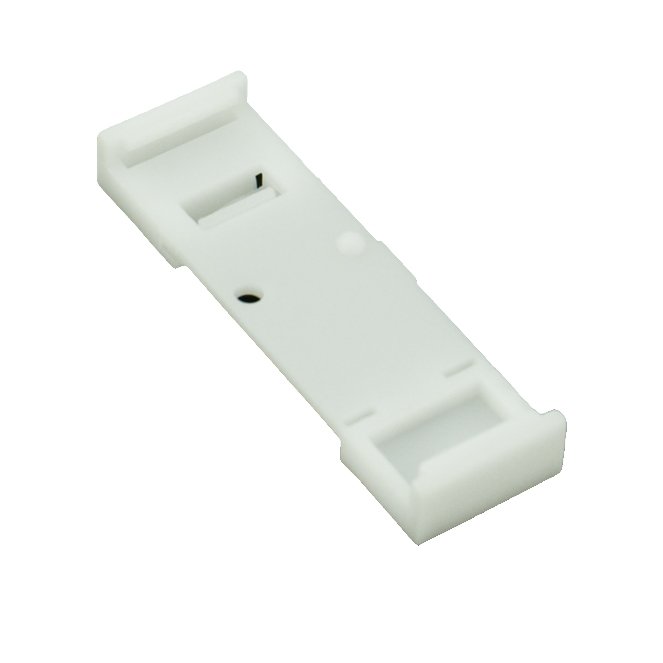

A109 Rail clip

Obsolete
  • Rail clip
  • For V10 socket
Obsolete Railway Relay Sockets

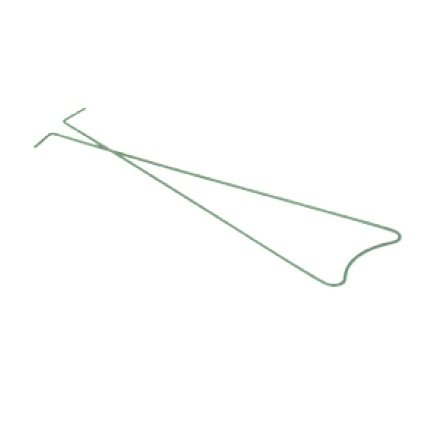

A110 Retaining clip

Obsolete
  • Retaining clip
  • For V10 socket
Obsolete Railway Relay Sockets

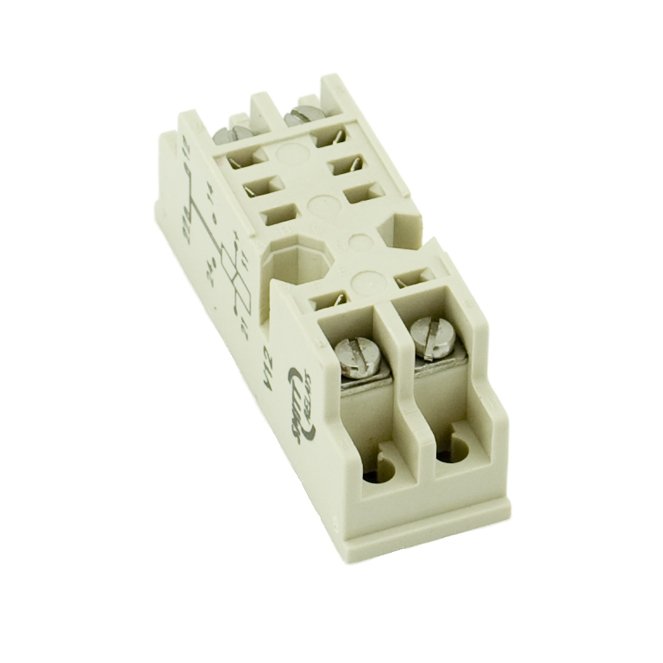

V10 socket - Screw terminal, wall mount

Obsolete
  • Surface / wall mount
  • Optional 35 mm rail mount with A109 rail clip
  • Sturdy screw terminals
  • Space saving
  • Suitable for all CU relay series
  • Up to two wires of 1.8 mm2 per connection terminal
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Obsolete Railway Relay Sockets


V11 socket - Screw terminal, wall mount, protectio…

Obsolete
  • Surface / wall mount
  • Optional 35 mm rail mount with A109 rail clip
  • Sturdy screw terminals
  • Back EMF protection diode
  • Space saving
  • Suitable for all CU relay series
  • Up to two wires of 1.8 mm2 per connection terminal
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Obsolete Railway Relay Sockets

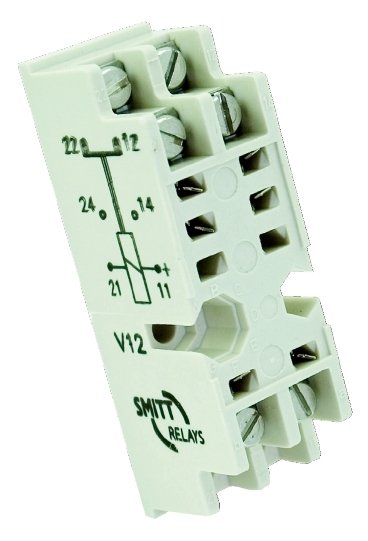

V12 socket - Screw terminal, wall mount, 4 kV insu…

Obsolete
  • Surface / wall mount
  • Optional 35 mm rail mount with A109 rail clip
  • Sturdy screw terminals
  • 4 kV insulation between coil and contacts
  • Space saving
  • Suitable for CU-U200/300-U relay series only
  • Up to two wires of 1.8 mm2 per connection terminal
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Obsolete Railway Relay Sockets

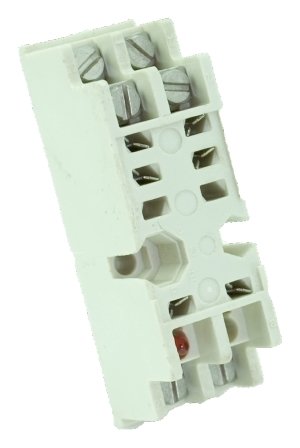

V13 socket - Screw terminal, wall mount, diode and…

Obsolete
  • Surface / wall mount
  • Optional 35 mm rail mount with A109 rail clip
  • Sturdy screw terminals
  • Back EMF protection diode
  • LED indicator
  • Space saving
  • Suitable for all CU-U200/300-U relay series only
  • Up to two wires of 1.8 mm2 per connection terminal
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Obsolete Railway Relay Sockets

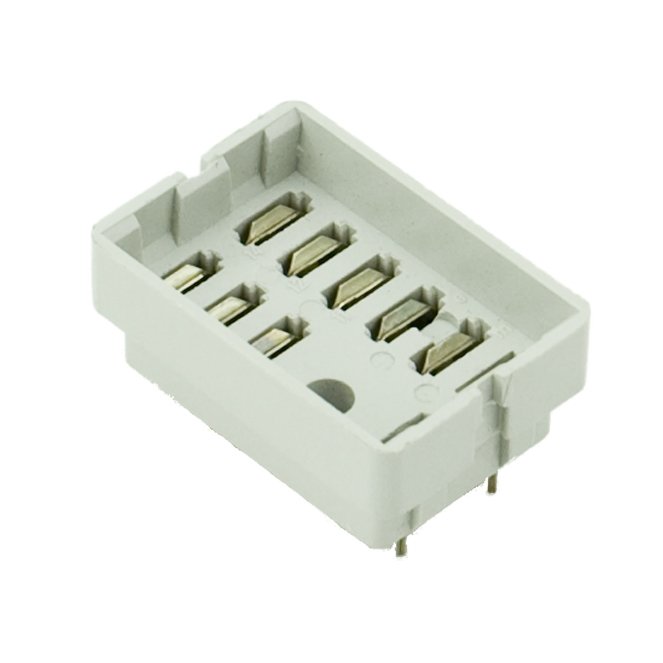

V14 socket - PCB mount

Obsolete
  • PCB mount
  • Space saving
  • Suitable for all CP relay series
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Obsolete Railway Relay Sockets

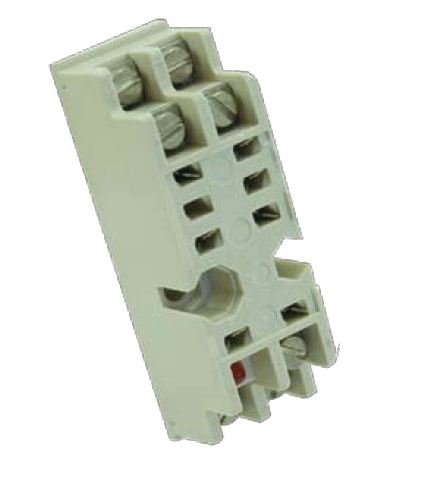

V15 socket - Screw terminal, wall mount, diode and…

Obsolete
  • Surface / wall mount
  • Optional 35 mm rail mount with A109 rail clip
  • Sturdy screw terminals
  • Back EMF protection diode
  • Space saving
  • Suitable for all CU-U200-D relay series
  • Up to two wires of 2.5 mm2 per connection terminal
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Obsolete Railway Relay Sockets

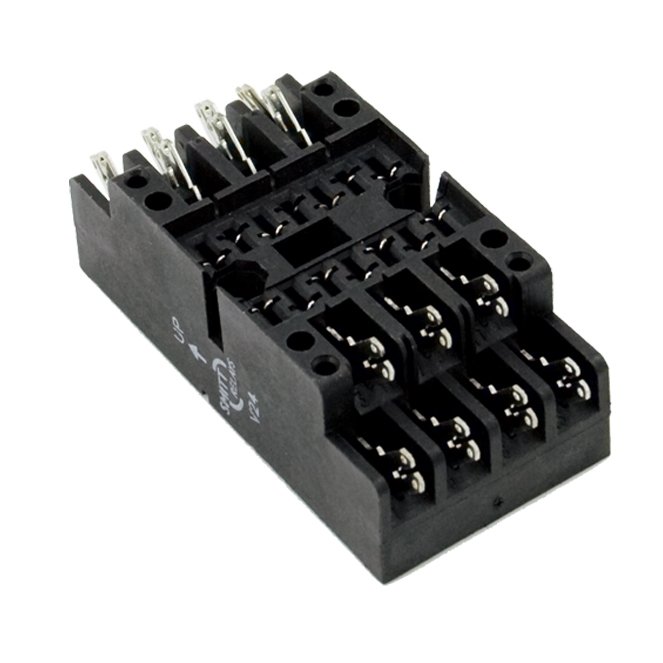

V24 socket - Faston terminal, wall mount

Obsolete
  • Surface / wall mount
  • Sturdy faston terminals
  • Space saving
  • Suitable for all D-U relay series
  • 1 faston 6.3 x 0.8 mm or 2 faston 2.8 x 0.8 mm
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Obsolete Railway Relay Sockets

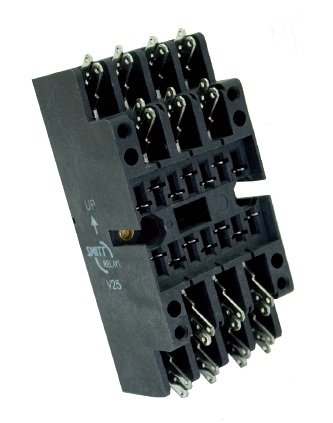

V25 socket - Faston terminal, rail mount

Obsolete
  • 35 mm rail mount
  • Sturdy faston terminals
  • Space saving
  • Suitable for all D-U relay series
  • 1 faston 6.3 x 0.8 mm or 2 faston 2.8 x 0.8 mm
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Obsolete Railway Relay Sockets

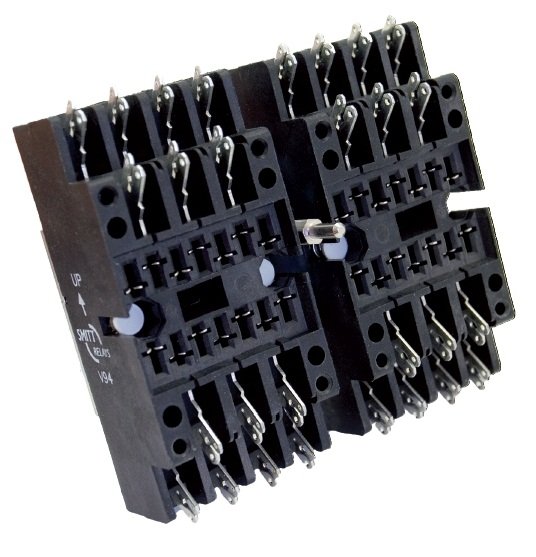

V94 socket - Faston terminal, wall mount 8 pole

Obsolete
  • Surface / wall mount
  • Sturdy faston terminals
  • Space saving
  • Suitable for all D8 and KDN relay series
  • 1 faston 6.3 x 0.8 mm or 2 faston 2.8 x 0.8 mm
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
Obsolete Railway Relay Sockets

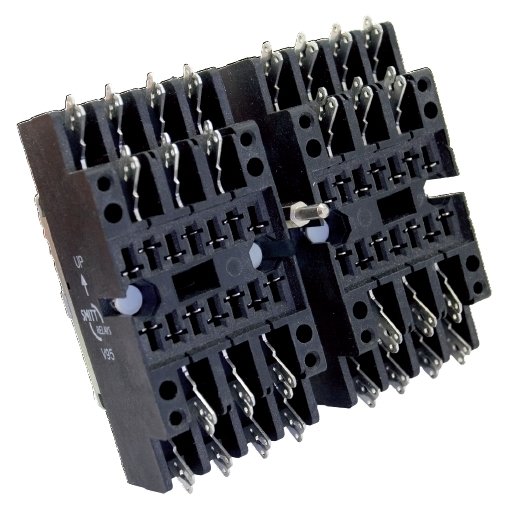

V95 socket - Faston terminal, rail mount, 8 pole

Obsolete
  • 35 mm rail mount
  • Sturdy faston terminals
  • Space saving
  • Suitable for all D8 and KDN relay series
  • 1 faston 6.3 x 0.8 mm or 2 faston 2.8 x 0.8 mm
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID
