V24 socket - Faston terminal, wall mount

Obsolete
Summary

This product is no longer available. The replacement sockets are the V23 and the V29.

Click here to go to the product page of the V23.

Click here to go to the product page of the V29.

Description

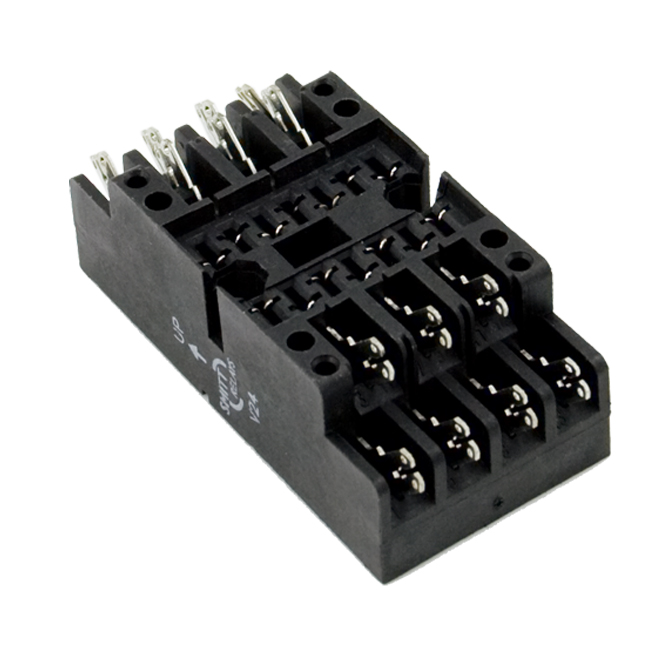

The V24 is a surface / wall mount relay socket. The V24 socket has one terminal per relay contact with tabs for one faston of 6.3 x 0.8 mm or two fastons of 2.8 x 0.8 mm.

To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays.

Clear UP arrow for correct mounting.


Application

The V24 relay socket is suitable for general railway applications with a space saving design. Installation and replacement of relays is made easy and cost saving. No maintenance is required for the user.

Suitable for all D-U relay series.


Features

  • Surface / wall mount
  • Sturdy faston terminals
  • Space saving
  • Suitable for all D-U relay series
  • 1 faston 6.3 x 0.8 mm or 2 faston 2.8 x 0.8 mm
  • Positive mechanical keying
  • Bifurcated female receiver for tight grip relay pin
  • Clear terminal ID

Benefits

  • Proven reliable
  • Long term availability
  • Easy to maintain
  • Low life cycle cost
  • No maintenance

Railway compliancy

  • EN 50155 Electronic equipment used on rolling stock for railway applications
  • IEC 60571 Electronic equipment used on railway vehicles
  • NF F 16-101/102, TS 45545-2 Fire behaviour - Railway rolling stock
  • NF F 62-002 On-off contact relays and fixed connections
