Obsolete Test & Measurement Products

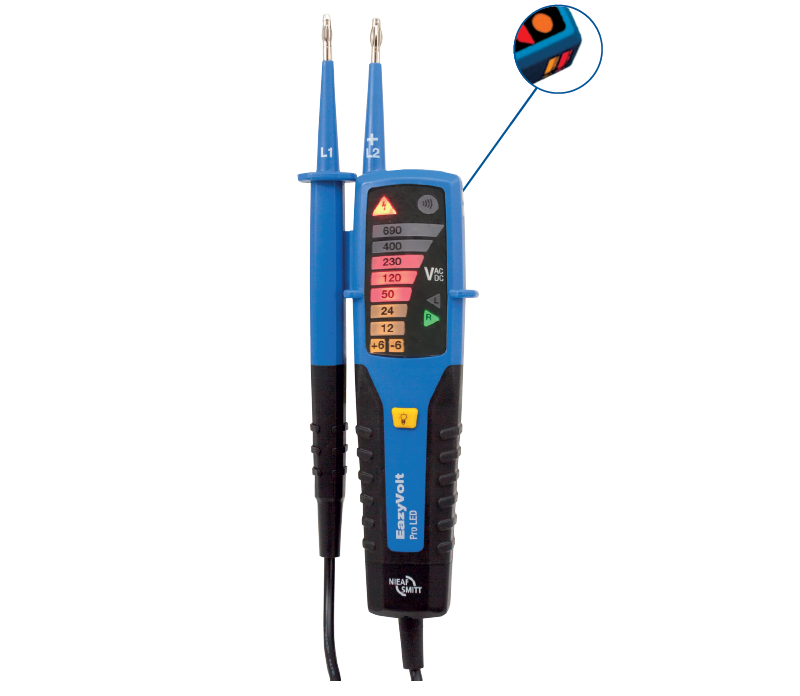

EazyVolt Pro LED Voltage tester

626002030 (OBSOLETE)
Summary

This product is no longer available.
The replacement is the EazyVolt Pro LED+


The EazyVolt Pro is a reliable 7-in-1 automatic voltage tester up to 750 V, with the following functions:

  • Measuring AC voltage
  • Measuring DC voltage
  • Phase detection (1-pole)
  • Continuity
  • Phase rotation
  • Self test
  • Torch

Features

  • Fully automatic
  • Audible sound
  • Flashlight/torch by ultra-bright LED
  • Selectable probe tips 2 - 4 mm
  • Side indication
  • Water resistance (IP 64)
  • Fail safe (no battery neede for VAC/DC measurements)
  • Shuko power outlet compliant (19 mm)
  • 3 Phase rotation
  • 1 hand operation

 Specificaties

Function Range
Voltage 6...690 V AC/DC
Continuity < 500 KΩ
Frequency 16...800 Hz
Specifications
Auto power on > 6 VAC/DC
LED resolution 6, 12, 24, 50, 120, 230, 400, 690 V
Voltage detection Automatic
Response time < 1 s
Supply 2x AAA 1.5 V batteries
IP protection IP 65
Overvoltage category CAT III 1000 V / CAT IV 600 V
Drop proof 1 meter
Applicable standards EN 61010-1 / -031, EN 61243-3, EN
60529, EN 61557-7/ -10/ -1, EN 61326,
EN 55011
Approvals CE, TÜV, GS
Dimensions 280 x 74 x 34 mm
Weight ± 220 g (incl. batteries)
