Digital Multimeters

NI 74 True RMS digital multimeter

626005055
Summary

True RMS digital multimeter

The NI 74 is a compact True RMS multimeter with a wide range of possibilities. This makes the NI 74 a perfect meter for users who want that extra like measuring temperature.

The NI 74 is protected against water (IP67).

Features

  • True RMS
  • AC/DC voltage up to 1000 V
  • AC/DC current up to 10 A (20 A for 30 s)
  • Temperature up to 760 °C
  • Resistance, capacity and frequency measurement
  • Continuity- / diode test
  • Dust and water protected (IP67)
  • Min–max hold
  • Duty cycle
  • LCD backlight

Including

  • User manual
  • Test leads

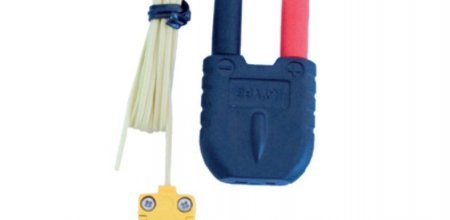

  • Type K thermocouple
  • Battery

Specifcations

Function Range Accuracy
Voltage 1000 VAC
1000 VDC
± 0.8 % + 4d
± 0.1 % + 2d
Current 10 AAC
10 ADC
± 0.8 % + 3d
± 1.0 % + 3d
Resistance 60 MΩ ± 0.5 % + 2d
Frequency 10 MHz ± 1.2 % + 3d
Capacity 4000uF ± 3.0 % + 5d
Temperature 760ºC ± 3.0 % + 5d
General
Protection IP 67
Display resolution 2000d
Overvoltage category CAT III 1000 V & CAT IV 600 V
Standard EN 61010-1
Supply 1x 9 V battery
Dimensions 170 x 79 x 50 mm
Weight ± 342 g (incl. battery)
Including Test leads, type K thermo couple, bag, battery, manual
