EVSE charging pole adapter

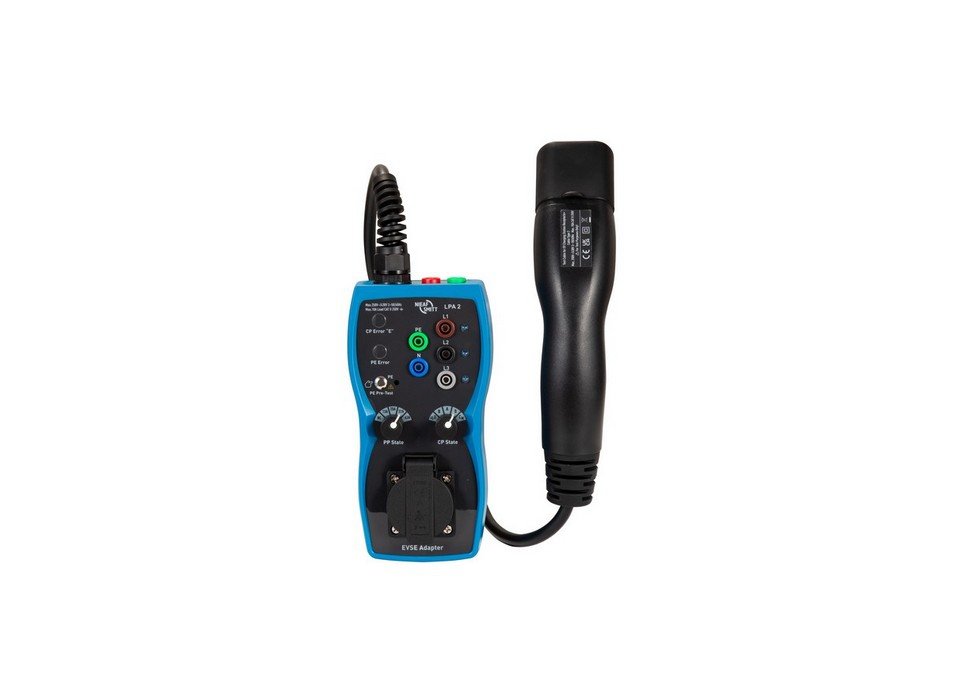

LPA 2 - EVSE adapter

The LPA 2 is an adapter for interfacing Electric Vehicle Features
Supply Equipment (EVSE) to test socket of installation
tester for verifi cation of electrical safety and functional
testing. It is intended for testing Mode 3 EV supply
equipment with type 2 connector.

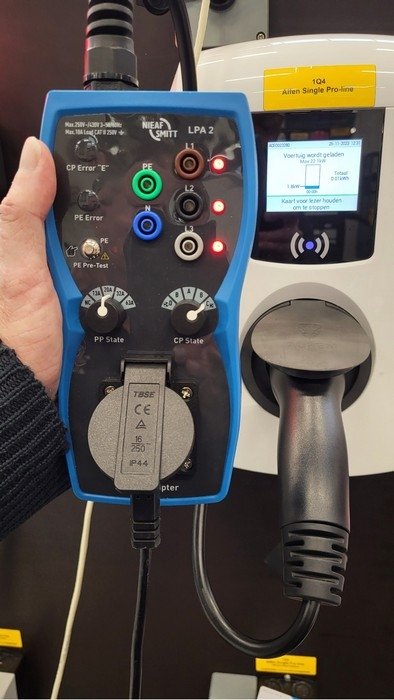

The LPA 2 adapter allows you to conduct tests in
combination with appropriate test instruments like an
installation tester (for example Instaltest XB)

Functions

• PE Pre-Test
• Proximity Pilot (PP) state “Cable Simulation”
• Control Pilot (CP) state “Vehicle Simulation”:
• Various charging states can be simulated.
• Simulation of CP error “E”
• Simulation of PE error (Earth fault)
