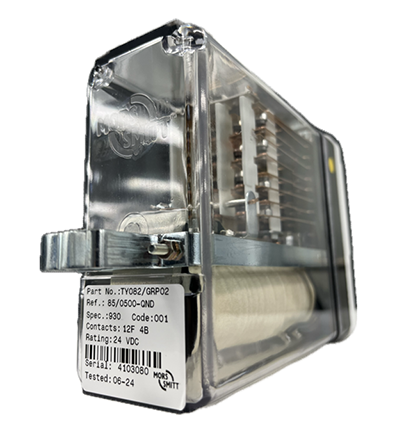

TY082/GRP02

Description

D.C. NEUTRAL LINE DOUBLE WOUND RELAY
The TY082/GRP02 is a 12F 4B Neutral Line Relay for general railway trackside signalling applications where special characteristics such as AC immunity, slow release etc. are not required. Double windings allow use in railway signalling circuits where operation from either of two separate supplies is required. Of compact modular plug-in design it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

Catalogue Number : 0085/000500
Network Rail Certification No : PA05/04802
Q Reference : QND2
Pin Code : 0001
BRB Specification : 930
Complete Contact Arrangement : 12F4B
Nominal Voltage/ Current : 24V d.c.
Dimensions (mm) : 120 x 58 x 180mm
Weight : 1.24kg
