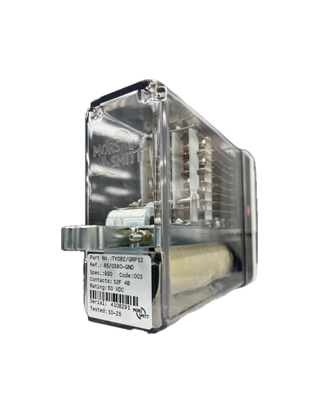

TY082/GRP12

Description

D.C. NEUTRAL LINE DOUBLE WOUND RELAY
The TY082/GRP12 is a 12F 4B Neutral Line Relay for general railway trackside signalling applications where special characteristics such as AC immunity, slow release etc. are not required. Double windings allow use in railway signalling circuits where operation from either of two separate supplies is required. Of compact modular plug-in design it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

• Catalogue Number: 0085/000560
• Network Rail Certification No: PA05/04802
• Q Reference: QND2
• Pin Code: 0003
• BRB Specification: 930
• Complete Contact Arrangement: 12F4B
• Nominal Voltage/Current: 50V d.c.
• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.24kg
