Q Style / BR930 signalling relays

TY082/GRP27

Summary

Description

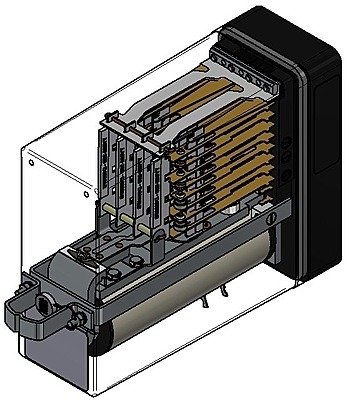

D.C. NEUTRAL LINE RELAY

The TY082/GRP27 is an 8F 4B Neutral Line Relay for general railway trackside signalling applications where special characteristics such as AC immunity, slow release etc. are not required. Of compact modular plug-in design it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

  • Network Rail Certification No: Not used in the UK
  • Q Reference: QN1
  • Pin Code: 0279
  • BRB Specification: -
  • Complete Contact Arrangement: 8F4B
  • Nominal Voltage/Current: 12V d.c.
  • Dimensions (mm): 120 x 58 x 180mm
  • Weight: 1.24kg
