Q Style / BR930 signalling relays

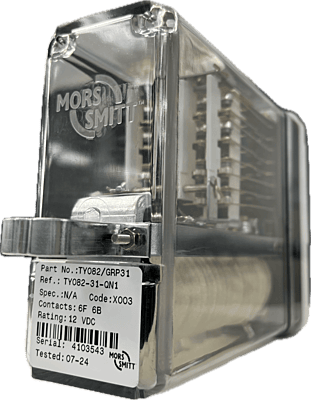

TY082/GRP31

Summary

Description

D.C. NEUTRAL LINE RELAY

The TY082/GRP31 is a 6F 6B Neutral Line Relay for general railway trackside signalling applications where special characteristics such as AC immunity, slow release etc. are not required. Of compact modular plug-in design it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

  • Network Rail Certification No: Not used in the UK
  • Q Reference: QN1
  • Pin Code: X003
  • BRB Specification: -
  • Complete Contact Arrangement: 6F6B
  • Nominal Voltage/Current: 12V d.c.
  • Dimensions (mm): 120 x 58 x 180mm
  • Weight: 1.24kg
