Q Style / BR930 signalling relays

TY082/GRP34

Summary

Description

D.C. NEUTRAL LINE RELAY WITH HIGHER RELEASE VOLTAGE

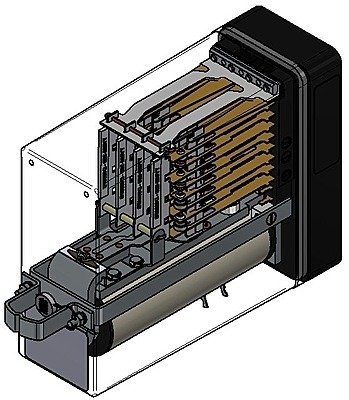

The TY082/GRP34 is an 8F 8B Neutral Line Relay with high release voltage for general railway trackside signalling applications where special characteristics such as AC immunity, slow release etc. are not required. This is equivalent to ZS4513. Of compact modular plug-in design it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

  • Network Rail Certification No: Not used in the UK
  • Q Reference: QNH
  • Pin Code: 0034
  • BRB Specification: 930
  • Complete Contact Arrangement: 8F8B
  • Nominal Voltage/Current: 24V d.c.
  • Dimensions (mm): 120 x 58 x 180mm
  • Weight: 1.24kg
