Q Style / BR930 signalling relays

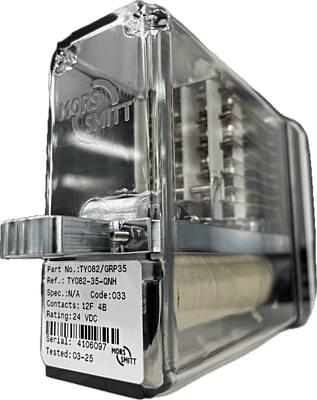

TY082/GRP35
Summary
Description
D.C. NEUTRAL LINE RELAY WITH HIGHER RELEASE VOLTAGE
The TY082/GRP35 is a 12F 4B Neutral Line Relay with high release voltage for general railway trackside signalling applications where special characteristics such as AC immunity, slow release etc. are not required. This is equivalent to ZS5513. Of compact modular plug-in design it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.
Specifications
- Catalogue Number: 0085/000231
- Network Rail Certification No: PA05/04802
- Q Reference: QNH
- Pin Code: 0033
- BRB Specification: 930
- Complete Contact Arrangement: 12F4B
- Nominal Voltage/Current: 24V d.c.
- Dimensions (mm): 120 x 58 x 180mm
- Weight: 1.24kg
