Q Style / BR930 signalling relays

TY083/GRP04

Summary

Description

A.C. IMMUNE D.C. NEUTRAL LINE RELAY

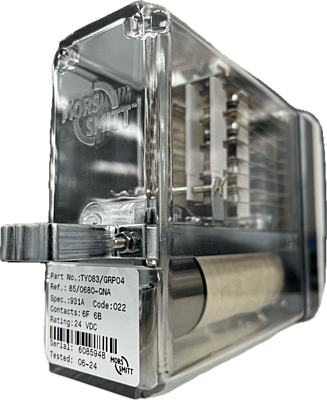

The TY083/GRP04 is a 6F 6B AC Immune DC Neutral Line Relay for general railway trackside signalling applications where special characteristics such as slow release etc. are not required. Of compact modular plug-in design it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

  • Catalogue Number: 0085/000680
  • Network Rail Certification No: PA05/04802
  • Q Reference: QNA1
  • Pin Code: 0022
  • BRB Specification: 931A
  • Complete Contact Arrangement: 6F6B
  • Nominal Voltage/Current: 24V d.c.

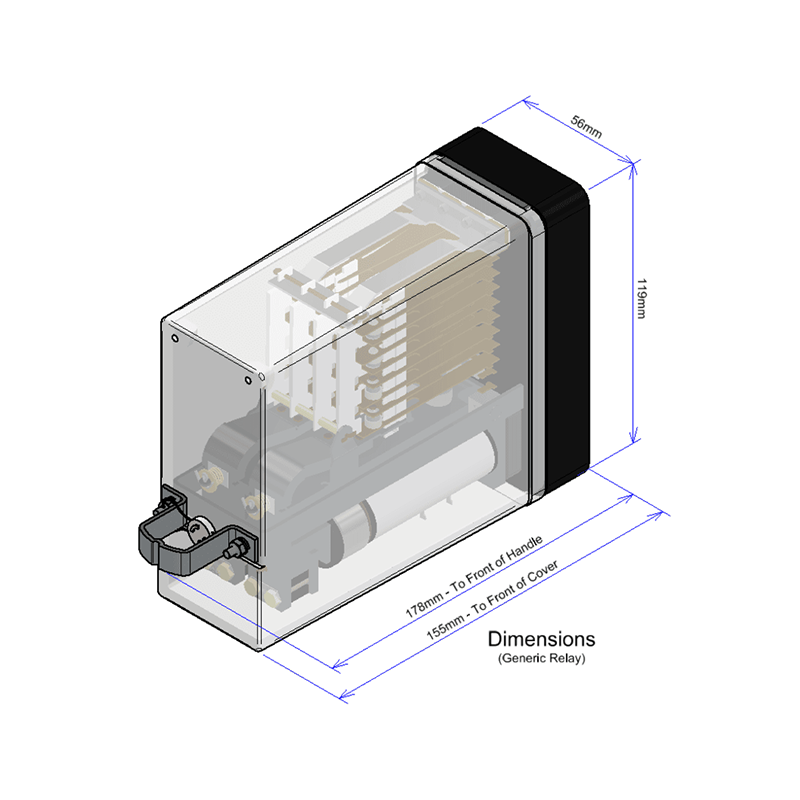

  • Dimensions (mm): 120 x 58 x 180mm
  • Weight: 1.24kg
