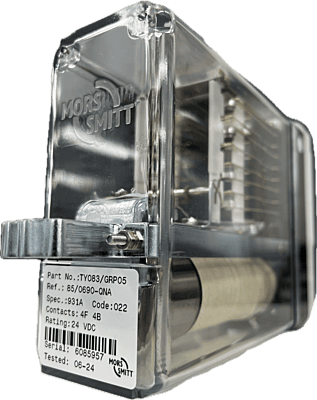

TY083/GRP05

Description

A.C. IMMUNE D.C. NEUTRAL LINE RELAY
The TY083/GRP05 is a 4F 4B AC Immune DC Neutral Line Relay for general railway trackside signalling applications where special characteristics such as slow release etc. are not required. Of compact modular plug-in design, it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

• Catalogue Number: 0085/000690
• Network Rail Certification No: PA05/04802
• Q Reference: QNA1
• Pin Code: 0022
• BRB Specification: 931A
• Complete Contact Arrangement: 4F4B
• Nominal Voltage/Current: 24V d.c.
• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.24kg
