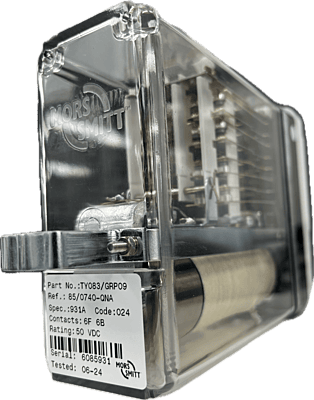

TY083/GRP09

Description

A.C. IMMUNE D.C. NEUTRAL LINE RELAY
The TY083/GRP09 is a 6F 6B AC Immune DC Neutral Line Relay for general railway trackside signalling applications where special characteristics such as slow release etc. are not required. Of compact modular plug-in design it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

• Catalogue Number: 0085/000740
• Network Rail Certification No: PA05/04802
• Q Reference: QNA1
• Pin Code: 0024
• BRB Specification: 931A
• Complete Contact Arrangement: 6F6B
• Nominal Voltage/ Current: 50V d.c.
• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.24kg
