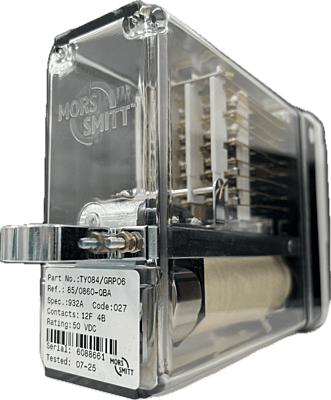

TY084/GRP06

Description

A.C. IMMUNE D.C. BIASED LINE RELAY
The TY084/GRP06 is a 12F 4B AC Immune DC Biased Line Relay for general railway trackside signalling applications where special characteristics such as slow release>The TY084/GRP06 is a 12F 4B AC Immune DC Biased Line Relay for general railway trackside signalling applications where special characteristics such as slow release etc. are not required. Of compact modular plug-in design it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

• Catalogue Number: 0085/000860
• Network Rail Certification No: PA05/04802
• Q Reference: QBA1
• Pin Code: 0027
• BRB Specification: 932A
• Complete Contact Arrangement: 12F4B
• Nominal Voltage/ Current: 50V d.c.
• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.24kg
