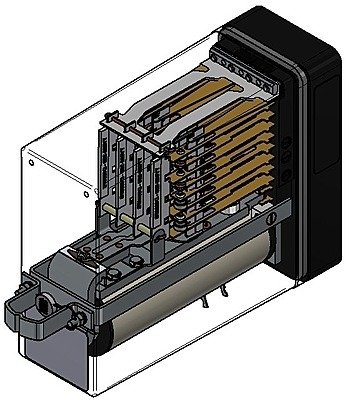

TY084/GRP08

Description

A.C. IMMUNE D.C. BIASED LINE RELAY
The TY084/GRP08 is an 8F 8B AC Immune DC Biased Line Relay for general railway trackside signalling applications where special characteristics such as slow release etc. are not required. Of compact modular plug-in design it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

• Catalogue Number: 0085/000880
• Network Rail Certification No: PA05/04802
• Q Reference: QBA1
• Pin Code: 0028
• BRB Specification: 932A
• Complete Contact Arrangement: 8F8B
• Nominal Voltage/ Current: 50V d.c.
• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.24kg
