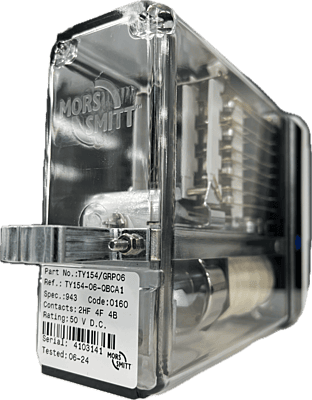

TY154/GRP06

Description

A.C. IMMUNE D.C. BIASED CONTACTOR RELAY
The TY154/GRP06 is a 2HF 4F 4B contactor relay for use in line circuits where the relay is designed to control the motor circuit of a point machine or other similar heavy duty applications. Of compact modular plug-in design it has non-weld signaling contacts, weld-no-transfer heavy duty contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

• Network Rail Certification No: Not used in the UK
• Q Reference/ Current: 50V d.c.
• Q Reference: QBCA1
• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.24kg
