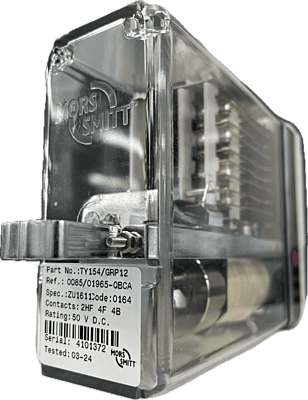

TY154/GRP12

Description

A.C. IMMUNE D.C. BIASED CONTACTOR RELAY
The TY154/GRP12 is a 2HF 4F 4B Contactor Relay for use in line circuits where the relay controls the motor circuit of a point machine or other similar heavy duty applications and a high release voltage is required. Equivalent to GEC's ZU1611. Of compact modular plug-in design, it has non-weld signaling contacts, weld-no-transfer heavy duty contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

• Catalogue Number: 0085/001965
• Network Rail Certification No: PA05/04802
• Q Reference: QBCA
• Pin Code: 0164
• BRB Specification: ZU1611
• Complete Contact Arrangement: 2H4F4B
• Nominal Voltage/Current: 50V d.c.
• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.24kg
