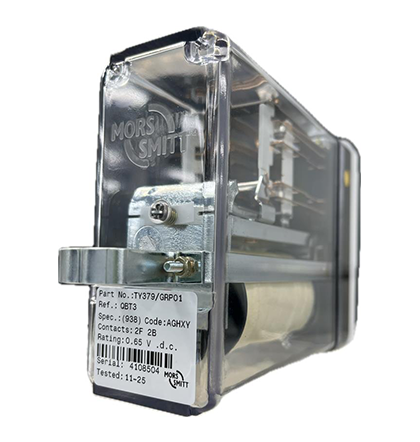

TY379/GRP01

Description

D.C. BIASED TRACK RELAY

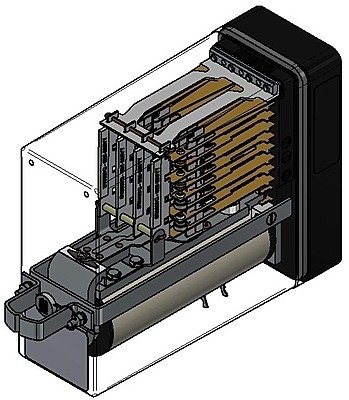

The TY379/GRP01 is a 2F 2B DC Biased Track Relay used for proving the absence of a train on tracks. Of compact modular plug-in design, it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

• Network Rail Certification No: Not used in the UK
• Q Reference: QBT3
• Pin Code: X531
• BRB Specification: 938
• Complete Contact Arrangement: 2F2B
• Nominal Voltage/Current: 0.65V d.c.
• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.24kg
