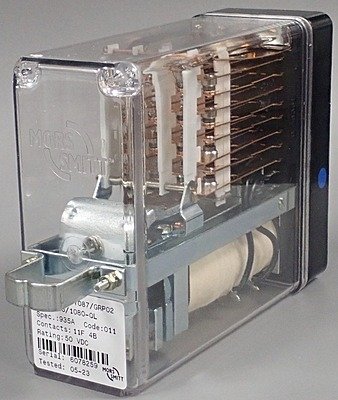

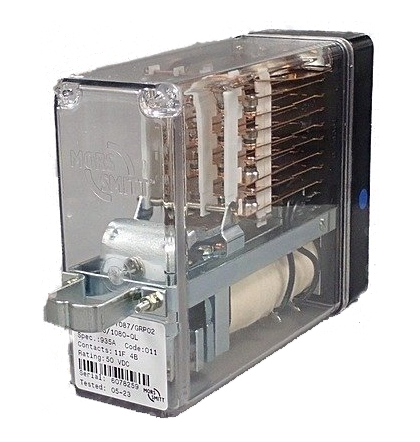

TY087/GRP02

Description

D.C. MAGNETICALLY LATCHED NEUTRAL LINE RELAY
The TY087/GRP02 is an 11F 4B DC magnetically latched relay with separate release winding. Of compact modular plug-in design it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

• Catalogue Number: 0085/001080
• Network Rail Certification No: PA05/04802
• Q Reference: QL1
• Pin Code: 0011
• BRB Specification: 935A
• Complete Contact Arrangement: 11F4B
• Nominal Voltage/Current: 50V d.c.
• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.24kg
