TY132/GRP03

Description

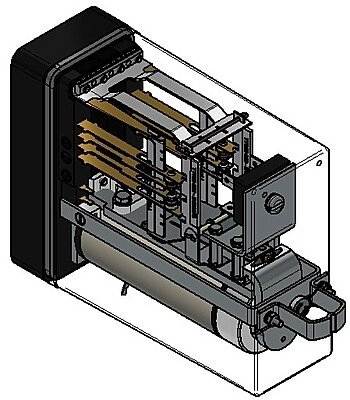

A.C. LAMP PROVING RELAY
This relay is designed for railway signalling applications where lamp proving functionality is required. It ensures correct operation and monitoring of A.C. lamp circuits in trackside installations.

Specifications

• Catalogue Number: 0085/001351
• Network Rail Certification No: PA05/01123
• Q Reference: QECX21
• Pin Code: 0286
• BRB Specification: 948
• Complete Contact Arrangement: 4F
• Nominal Voltage/Current: 400mA a.c.
• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.24kg
