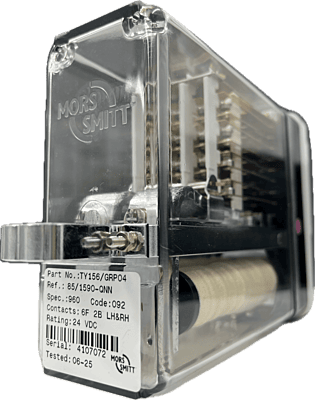

TY156/GRP04

Description

TWIN D.C. NEUTRAL LINE RELAY
The TY156/GRP04 is a Twin, slow release etc. are not required. Twin relays consist of two relays which in effect are electrically and mechanically independent, housed in a single enclosure to the dimensions of a single relay to BR930. Of compact modular plug-in design it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

• Catalogue Number: 0085/001590
• Network Rail Certification No: PA05/04802
• Q Reference: QNN1
• Pin Code: 0092
• BRB Specification: 960
• Complete Contact Arrangement: 6F2B
• Nominal Voltage/Current: 24V d.c.
• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.24kg
