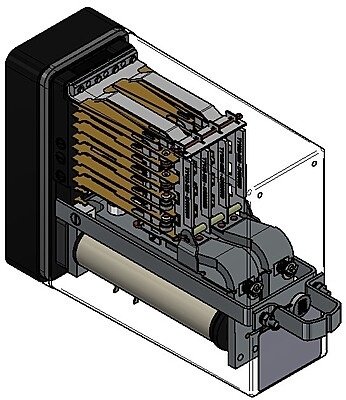

TY156/GRP12

Description

TWIN D.C. NEUTRAL DOUBLE WOUND LINE RELAY
The TY156/GRP12 is a Twin 2F 1B Neutral Line Relay for general railway trackside signalling applications where special characteristics such as AC immunity, slow release etc. are not required. Double windings allow use in railway signalling circuits where operation from either of two separate supplies is required. Twin relays consist of two relays which in effect are electrically and mechanically independent, housed in a single enclosure to the dimensions of a single relay to BR930.

Specifications

• Catalogue Number: 0085/001720
• Network Rail Certification No: PA05/04802
• Q Reference: QNND1
• Pin Code: 0054
• BRB Specification: 960
• Complete Contact Arrangement: 2F1B
• Nominal Voltage/Current: 24V d.c.
• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.24kg
