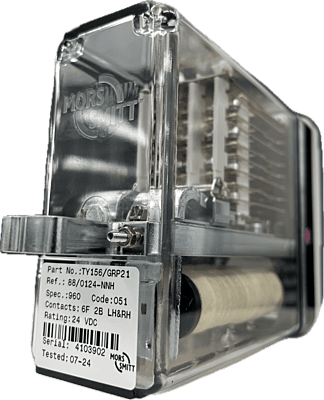

TY156/GRP21

Description

TWIN D.C. NEUTRAL LINE RELAY WITH HIGHER RELEASE VOLTAGE
The TY156/GRP21 is a Twin 6F 2B Neutral Line Relay with high release voltage for general railway trackside signalling applications where special characteristics such as AC immunity, slow release etc. are not required. Twin relays consist of two relays which in effect are electrically and mechanically independent, housed in a single enclosure to the dimensions of a single relay to BR930. Of compact modular plug-in design it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

• Catalogue Number: 088/000124
• Network Rail Certification No: PA05/04802
• Q Reference: QNNH
• Pin Code: 051
• BRB Specification: 960
• Complete Contact Arrangement: 6F2B
• Nominal Voltage/Current: 24V d.c.
• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.24kg
