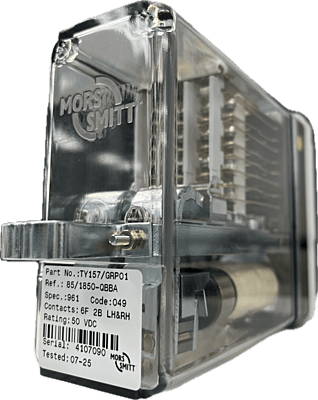

TY157/GRP01

Description

TWIN A.C. IMMUNE D.C. BIASED LINE RELAY
The TY157/GRP01 is a Twin 6F 2B AC not required. Twin relays consist of two relays which in effect are electrically and mechanically independent, housed in a single enclosure to the dimensions of a single relay to BR930. Of compact modular plug-in design it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

• Catalogue Number: 0085/001850
• Network Rail Certification No: PA05/04802
• Q Reference: QBBA1
• Pin Code: 0049
• BRB Specification: 961
• Complete Contact Arrangement: 6F2B
• Nominal Voltage/Current: 50V d.c.
• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.24kg
