TY159/GRP02

Description

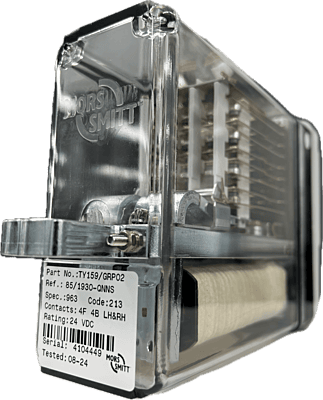

TWIN D.C. SLOW-ACTING NEUTRAL LINE RELAY
The TY159/GRP02 is a Twin 4F 4B slow operate, slow release neutral line relay for railway trackside signalling applications where AC immunity is not required. Twin relays consist of two relays which in effect are electrically and mechanically independent, housed in a single enclosure to the dimensions of a single relay to BR930. Of compact modular plug-in design, it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

• Catalogue Number: 0085/001930
• Network Rail Certification No: PA05/04802
• Q Reference: QNNS1
• Pin Code: 0213
• BRB Specification: 963
• Complete Contact Arrangement: 4F4B
• Nominal Voltage/Current: 24V d.c.
• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.24kg
