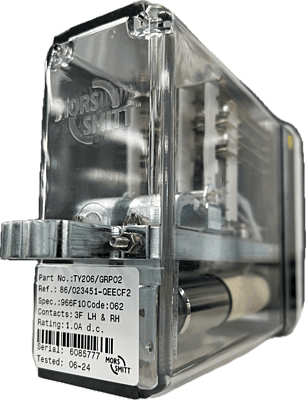

TY206/GRP02

Description

TWIN D.C. LAMP PROVING RELAY
The TY206/GRP01 is a Twin 2F DC Neutral relay suitable for lamp proving of flashing DC lamps. Such application is required for flashing road signals at level crossing installations. The circuit for each half of the twin relay consists of one pair of Unipart Dorman LWWM2/R/2/50/01 energised from a battery supply. Each lamp of the pair will flash alternately, with a space or an overlap of up to 0.045 seconds, at a rate of 60 to 90 flashes per minute per lamp.

Specifications

• Catalogue Number: 0086/023451
• Network Rail Certification No: PA05/04802
• Q Reference: QEECF2
• Pin Code: 0062
• BRB Specification: 966 F10
• Complete Contact Arrangement: 3F
• Nominal Voltage/Current: 1A d.c.
• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.24kg
