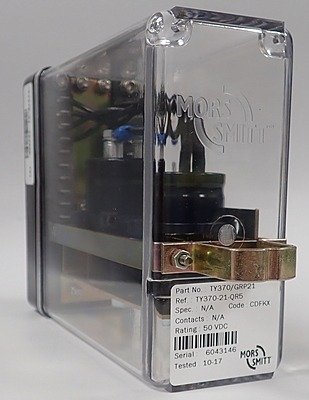

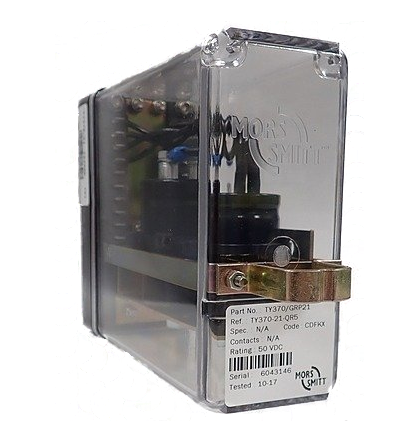

TY370/GRP21

Description

RESISTOR/CAPACITOR CIRCUIT
The TY370/GRP21 is a resistor / capacitor module designed to introduce a time delay into a relay circuit. It is designed for use with neutral line relays with high operate values. Of compact modular plug-in design it has non-weld contacts and is equipped with a safety interlocking system (pin code) for insertion into mating plugboards.

Specifications

• Network Rail Certification No: Not used in the UK
• Q Reference: QR5
• Pin Code: X149
• BRB Specification: -
• Complete Contact Arrangement: -
• Nominal Voltage/Current: 50V d.c.
• Dimensions (mm): 120 x 58 x 180mm
• Weight: 1.24kg
