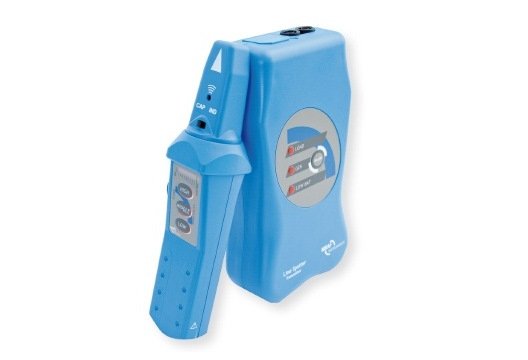

LineSpotter
Niet Meer Leverbaar (626000553)Summary
The LineSpotter is een detection device, designed to locate cables and metal plumbing in walls, floors or ceililngs. And to identify fuses/ mcb's.
The principle of the LineSpotter is based on a transmitter and receiver. The transmitter sends a signal of 10.6 kHz, which can be traced or located with the receiver. The receiver can be adjusted into 3 sensitivity modes, low - middle - high. The additional trimmer performs the fine tuning.
Features
- Tracing of cables in walls, ceilings, floors or ground up to 20 cm
- Indiction under live and not connected situations
- Location of cable interruptions or short circuits
- Location of hidden sockets or distribution boxes
- Locating fuses and assignment to circuits
- Determine individual wires in a bundle
- Tracing of plumbing or other conductive loops
Specifications
| Transmitter | |
| Low battery indicator | ja |
| Supply | 4x AA 1.5 V battery |
| Dimensions | 150 x 80 x 50 mm |
| Weight | 280 g |
| Receiver | |
| Signal | 10.6 kHz |
| Average injected current | 1 A |
| Low battery indicator | Ja |
| Standard | EN 61010-1 |
| Supply | 1x 9 V battery |
| Dimensions | 180 x 45 x 45 mm |
| Weight | 150 g |
| General | |
| Including | Test leads, test probes, alligator clamps, bag, batteries, manual |
